Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
24
Contact Finish - Post:
Tin
edacadModel:
09195245913 Models
Overall Contact Length:
-
title:

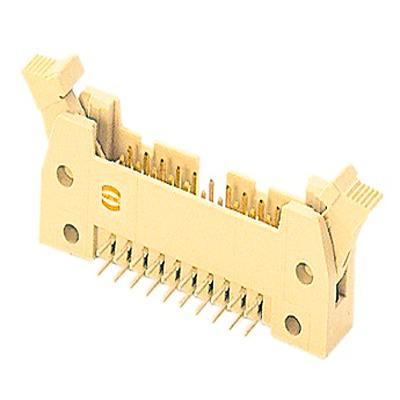

09195245913
Insulation Height:
0.335" (8.51mm)
Insulation Color:
Beige
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/8037163
Contact Shape:
Square
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Fastening Type:
Latch Lock/Eject Hooks, Short
Termination:
Solder
standardLeadTime:
9 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.114" (2.90mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot, Mounting Flange
Mounting Type:
Through Hole, Right Angle
Series:
SEK
Packaging:
Bulk
Mated Stacking Heights:
-
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Insulation Material:
Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
ECCN:
EAR99
Shrouded/Unshrouded:
Shrouded
Row Pitch:
2.54mm
Housing Material:
PBT
Tail Pin Length:
2.9mm
Connector System:
PCB-to-Cable
Number of Rows:
2
Contact Plating:
Noble Metal over Nickel
Product Type:
Male Connector
Maximum Operating Temperature:
125°C
Minimum Operating Temperature:
-55°C
Contact Gender:
Male
Standards/Approvals:
UL 94 V-0
Mount Type:
PCB
Current:
1A
Orientation:
Angled
Series:
SEK Standard
Voltage:
500V
Termination Type:
Solder
Pitch:
2.54mm
Mating Pin Length:
6.1mm
Number of Contacts:
24
Contact Material:
Copper Alloy
