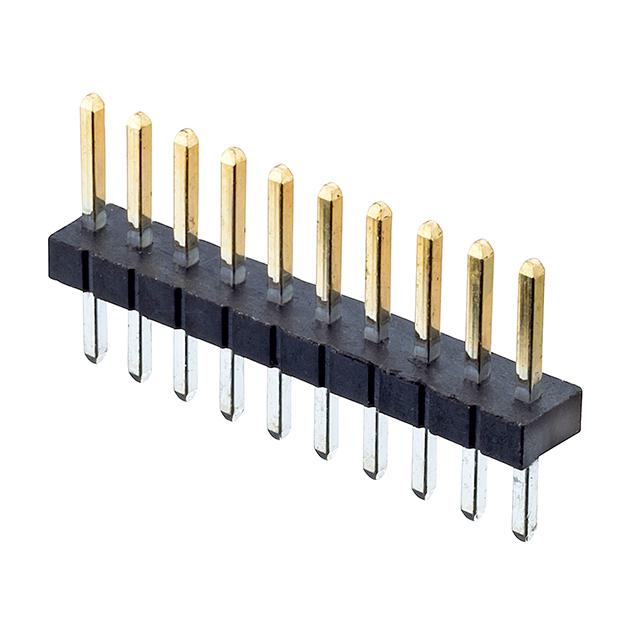

Harwin Inc. M50-3531042

M50-3531042 Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
10
Contact Finish - Post:
Tin
edacadModel:
M50-3531042 Models
Overall Contact Length:
0.248" (6.30mm)
title:
M50-3531042
Insulation Height:
0.039" (1.00mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/7044019
Contact Shape:
Square
Mated Stacking Heights:
3.10mm, 4.60mm, 5.40mm
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.118" (3.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
1A per Contact
Contact Length - Post:
0.091" (2.30mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
Archer M50
Packaging:
Box
Insulation Material:
Polyamide (PA9T), Nylon 9T
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
M50-353
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M50-3531042. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 10. It has possible tin contact post finishing. The product has a 0.248" (6.30mm) of overall contact lentgh. 0.039" (1.00mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The mated stacking heights of a bespoke product includes 3.10mm, 4.60mm, 5.40mm. header Connector type offer robust functionality. It is 0.118" (3.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is 1a per contact. 0.091" (2.30mm) is the given possible contact length (post) values. It has 0.050" (1.27mm) of pitch-mating value. The product is available in through hole configuration. The product archer m50, is a highly preferred choice for users. In addition, box is the available packaging type of the product. It has a robust polyamide (pa9t), nylon 9t insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to m50-353, a base product number of the product. The product is designated with the ear99 code number.
