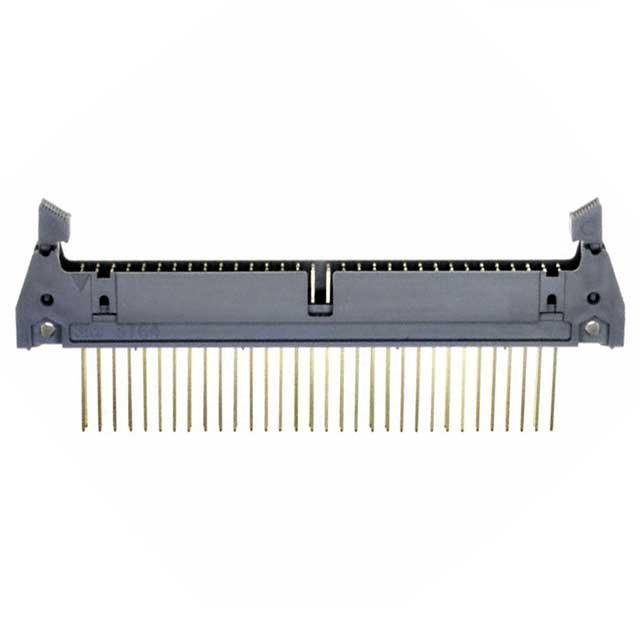

3M 3764-6205
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
64
Overall Contact Length:
1.150" (29.21mm)
Insulation Height:
0.680" (17.27mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Package:
Bulk
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Lock/Eject Hooks, Short
Termination:
Wire Wrap
Current Rating (Amps):
1A
Contact Length - Post:
0.610" (15.49mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot, Mounting Flange
Mounting Type:
Through Hole
Series:
3000
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
3764
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 3764-6205 on website for other similar products.
We accept all major payment methods for all products including ET13704937. Please check your shopping cart at the time of order.
You can order 3M brand products with 3764-6205 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 3M 3764-6205. You can also check on our website or by contacting our customer support team for further order details on 3M 3764-6205.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13704937 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "3M" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13704937.
Yes. We ship 3764-6205 Internationally to many countries around the world.
This is manufactured by 3M. The manufacturer part number is 3764-6205. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features flash of post thickness. The product carries possible position value of 64. The product has a 1.150" (29.21mm) of overall contact lentgh. 0.680" (17.27mm) of insulation height. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polybutylene terephthalate (pbt), polyester, glass filled insulation material. It is shipped in bulk package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch lock/eject hooks, short is the Fastening Type of the product. The product features wire wrap termination style. Additionally, the product's output is 1a. 0.610" (15.49mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot, mounting flange. The product is available in through hole configuration. The product 3000, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 3764, a base product number of the product. The product is designated with the ear99 code number.
