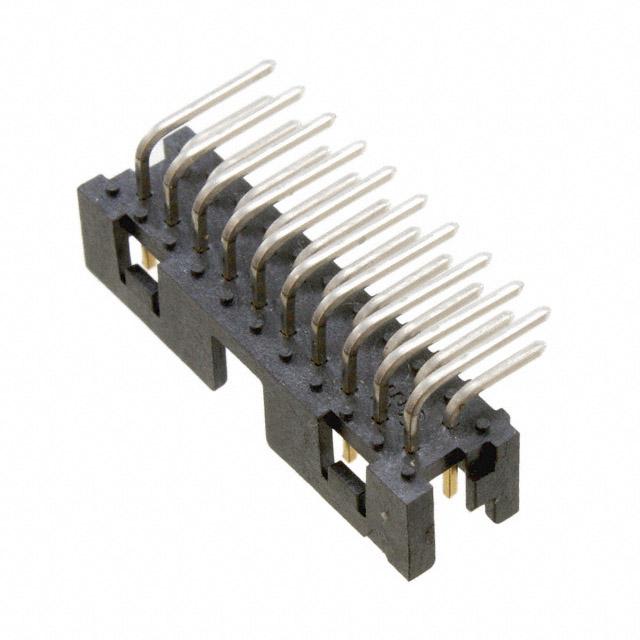

3M 159120-5002
Product Information
Current Rating:
1A
Minimum Operating Temperature:
-55°C
Mounting Type:
Through Hole
Gender:
Male
Body Orientation:
Right Angle
Pitch:
2mm
Termination Method:
Solder
Housing Material:
Glass Fibre Reinforced Liquid Crystal Polymer
Number of Rows:
2
Contact Plating:
Gold over Nickel
Series:
159
Number of Contacts:
20
Maximum Operating Temperature:
+105°C
Contact Material:
Copper Alloy
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
20
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.241" (6.13mm)
Voltage Rating:
150V
REACH Status:
REACH Unaffected
edacadModel:
159120-5002 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2503839
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Package:
Tray
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
0.142" (3.61mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Detent Lock
Termination:
Solder
Current Rating (Amps):
1.25A
Contact Length - Post:
0.112" (2.84mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole, Right Angle
Series:
159
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
159120
ECCN:
EAR99
