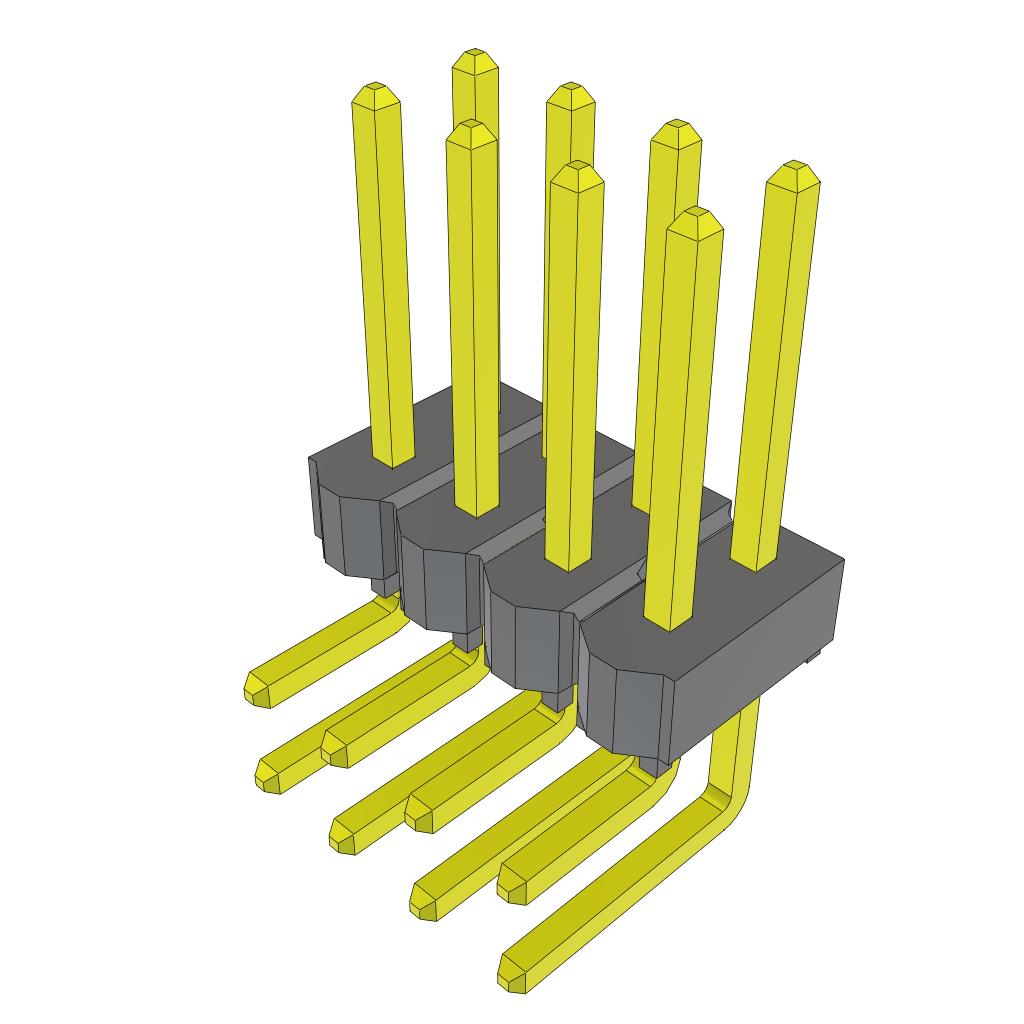

Samtec Inc. TSW-104-25-G-D-RA
Product Information
Manufacturer Standard Lead Time:
6 Weeks
Style:
Board to Board or Cable
Detailed Description:
Connector Header Through Hole, Right Angle 8 position 0.100" (2.54mm)
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
3.00µin (0.076µm)
Number of Positions:
8
Contact Length - Post:
0.100" (2.54mm)
Insulation Height:
0.219" (5.56mm)
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Shrouding:
Unshrouded
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
Samtec Inc.
Insulation Color:
Black
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.320" (8.13mm)
Number of Positions Loaded:
All
Fastening Type:
Push-Pull
Termination:
Solder
Pitch - Mating:
0.100" (2.54mm)
Mounting Type:
Through Hole, Right Angle
Series:
TSW
Packaging:
Bulk
Contact Finish - Mating:
Gold
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Insulation Material:
Polybutylene Terephthalate (PBT)
Contact Finish - Post:
Gold
Checking for live stock
FAQs
Yes. You can also search TSW-104-25-G-D-RA on website for other similar products.
We accept all major payment methods for all products including ET13390706. Please check your shopping cart at the time of order.
You can order Samtec Inc. brand products with TSW-104-25-G-D-RA directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Samtec Inc. TSW-104-25-G-D-RA. You can also check on our website or by contacting our customer support team for further order details on Samtec Inc. TSW-104-25-G-D-RA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13390706 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Samtec Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET13390706.
Yes. We ship TSW-104-25-G-D-RA Internationally to many countries around the world.
This is manufactured by Samtec Inc.. The manufacturer part number is TSW-104-25-G-D-RA. It has typical 6 weeks of manufacturer standard lead time. Additionally, the product is designed with board to board or cable Style. It features connector header through hole, right angle 8 position 0.100" (2.54mm). The product has -55°c ~ 125°c operating temperature range. Additionally, it features 3.00µin (0.076µm) of post thickness. The product carries possible position value of 8. 0.100" (2.54mm) is the given possible contact length (post) values. 0.219" (5.56mm) of insulation height. However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, a bespoke product features unshrouded. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The samtec inc.'s product offers user-desired applications. In addition, black is the insulation color of the product. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.320" (8.13mm) contact mated. However, all is the Number of Positions Loaded. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product tsw, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has nice contact finishing of gold. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. It has a robust polybutylene terephthalate (pbt) insulation material. It has possible gold contact post finishing.
