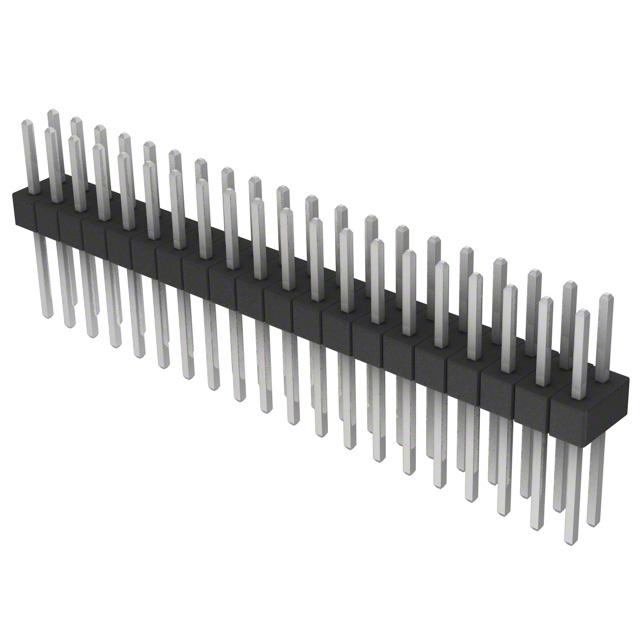

Sullins Connector Solutions PEC20DACN
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 125°C
Number of Positions:
40
Overall Contact Length:
0.650" (16.51mm)
Insulation Height:
0.100" (2.54mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Unshrouded
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.230" (5.84mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Type:
Male Pin
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
3A
Contact Length - Post:
0.320" (8.13mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
-
Packaging:
Bulk
Insulation Material:
Polybutylene Terephthalate (PBT)
Contact Material:
Phosphor Bronze
Base Product Number:
PEC20
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search PEC20DACN on website for other similar products.
We accept all major payment methods for all products including ET13224910. Please check your shopping cart at the time of order.
You can order Sullins Connector Solutions brand products with PEC20DACN directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Sullins Connector Solutions PEC20DACN. You can also check on our website or by contacting our customer support team for further order details on Sullins Connector Solutions PEC20DACN.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13224910 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Sullins Connector Solutions" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13224910.
Yes. We ship PEC20DACN Internationally to many countries around the world.
This is manufactured by Sullins Connector Solutions. The manufacturer part number is PEC20DACN. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 125°c operating temperature range. The product carries possible position value of 40. The product has a 0.650" (16.51mm) of overall contact lentgh. 0.100" (2.54mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. It carries 0.100" (2.54mm) of row spacing. header, breakaway Connector type offer robust functionality. It is 0.230" (5.84mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is not applicable. It has typical contact type of male pin. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 3a. 0.320" (8.13mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. In addition, bulk is the available packaging type of the product. It has a robust polybutylene terephthalate (pbt) insulation material. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to pec20, a base product number of the product. The product is designated with the ear99 code number.
