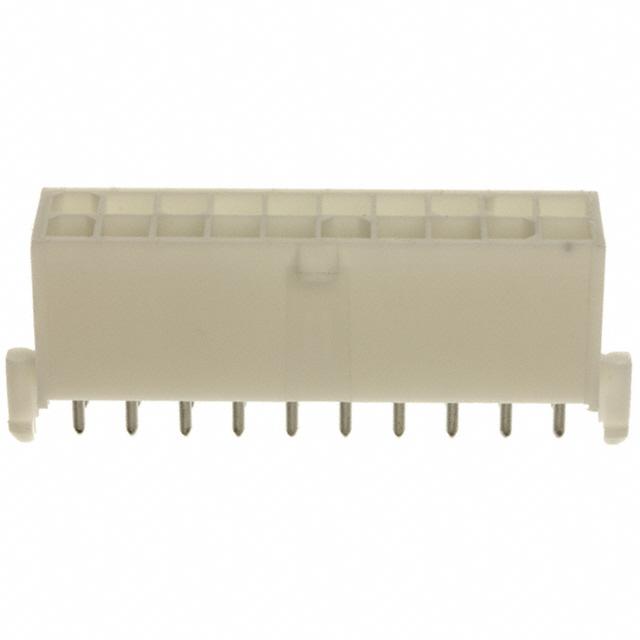

TE Connectivity AMP Connectors 794070-1
Product Information
Contact Finish - Mating:
Tin-Lead
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin-Lead
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-20°C ~ 85°C
Contact Finish Thickness - Post:
150.0µin (3.81µm)
Number of Positions:
20
Overall Contact Length:
-
Insulation Height:
0.531" (13.50mm)
Voltage Rating:
600VAC
REACH Status:
REACH Affected
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
White
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon
Package:
Bulk
Row Spacing - Mating:
0.163" (4.14mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
150.0µin (3.81µm)
Fastening Type:
Locking Ramp
Termination:
Solder
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.175" (4.45mm)
Pitch - Mating:
0.163" (4.14mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole
Series:
Mini-Universal MATE-N-LOK
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
794070
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 794070-1 on website for other similar products.
We accept all major payment methods for all products including ET13110632. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 794070-1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 794070-1. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 794070-1.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13110632 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13110632.
Yes. We ship 794070-1 Internationally to many countries around the world.
This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 794070-1. It has nice contact finishing of tin-lead. Additionally, the product is designed with board to cable/wire Style. It has possible tin-lead contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -20°c ~ 85°c operating temperature range. Additionally, it features 150.0µin (3.81µm) of post thickness. The product carries possible position value of 20. 0.531" (13.50mm) of insulation height. Moreover, the product has a nominal 600vac voltage rating. In addition, it is reach affected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, white is the insulation color of the product. It has a typical circular shape. It has a robust polyamide (pa), nylon insulation material. It is shipped in bulk package . It carries 0.163" (4.14mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 150.0µin (3.81µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is varies by wire gauge. 0.175" (4.45mm) is the given possible contact length (post) values. It has 0.163" (4.14mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in through hole configuration. The product mini-universal mate-n-lok, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 794070, a base product number of the product. The product is designated with the ear99 code number.
