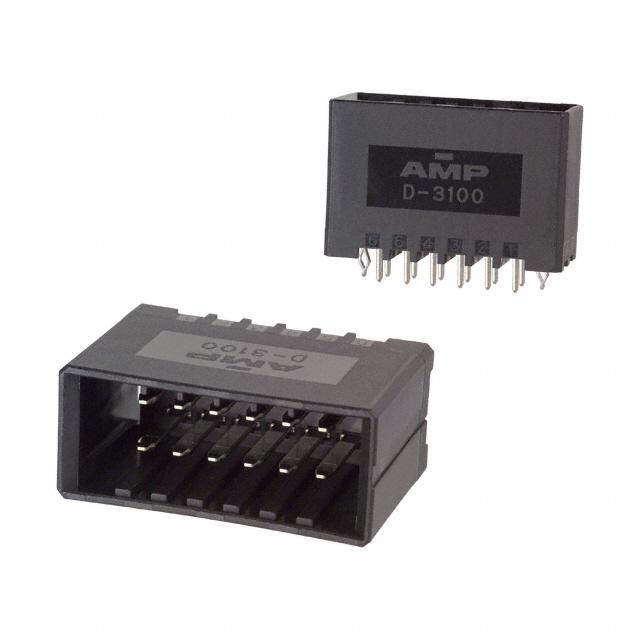

TE Connectivity AMP Connectors 178326-5

178326-5 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
12
Contact Finish - Post:
Tin
edacadModel:
178326-5 Models
Overall Contact Length:
-
title:
178326-5
Insulation Height:
0.850" (21.59mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose, Industrial
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/664274
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Voltage Rating:
250V
Row Spacing - Mating:
0.200" (5.08mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
78.7µin (2.00µm)
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
17 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.150" (3.81mm)
Pitch - Mating:
0.150" (3.81mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole
Series:
Dynamic D-3100
Packaging:
Bulk
Insulation Material:
Thermoplastic, Polyester, Glass Filled
Contact Type:
Tab
Contact Material:
Copper Alloy
Base Product Number:
178326
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 178326-5. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 12. It has possible tin contact post finishing. 0.850" (21.59mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose, industrial. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical rectangular shape. Moreover, the product has a nominal 250v voltage rating. It carries 0.200" (5.08mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 78.7µin (2.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 17 weeks standard lead time. 0.150" (3.81mm) is the given possible contact length (post) values. It has 0.150" (3.81mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in through hole configuration. The product dynamic d-3100, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust thermoplastic, polyester, glass filled insulation material. It has typical contact type of tab. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 178326, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Material Change 16/NOV/2023(PCN Design/Specification)
pdf icon
Alternative resin material 06/NOV/2023(PCN Design/Specification)
