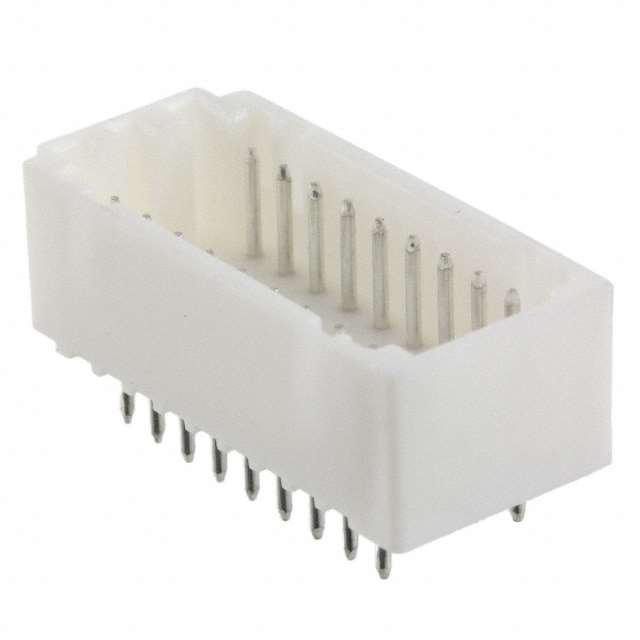

TE Connectivity AMP Connectors 1-292252-8

1-292252-8 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Number of Positions:
18
Contact Finish - Post:
Tin
edacadModel:
1-292252-8 Models
Overall Contact Length:
0.386" (9.80mm)
Insulation Height:
0.295" (7.50mm)
Insulation Color:
Natural
REACH Status:
Vendor Undefined
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2291586
Contact Shape:
Circular
Contact Finish Thickness - Mating:
-
Voltage Rating:
125VAC
Row Spacing - Mating:
0.256" (6.50mm)
Connector Type:
Header
Contact Length - Mating:
0.185" (4.70mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
10 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.126" (3.20mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
CT
Packaging:
Tray
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Material:
Brass
Base Product Number:
292252
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1-292252-8. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 18. It has possible tin contact post finishing. The product has a 0.386" (9.80mm) of overall contact lentgh. 0.295" (7.50mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is vendor undefined. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. Moreover, the product has a nominal 125vac voltage rating. It carries 0.256" (6.50mm) of row spacing. header Connector type offer robust functionality. It is 0.185" (4.70mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 10 weeks standard lead time. Additionally, the product's output is varies by wire gauge. 0.126" (3.20mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole configuration. The product ct, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. The product is made from sturdy brass materials. Moreover, it corresponds to 292252, a base product number of the product. The product is designated with the ear99 code number.
