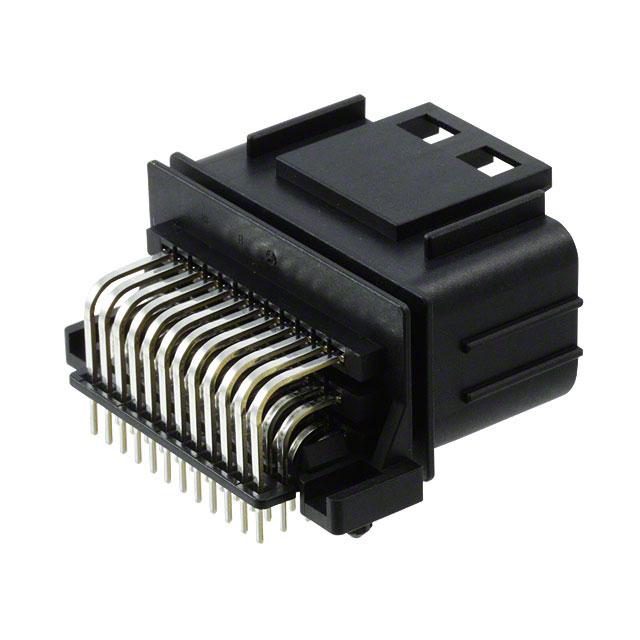

JAE Electronics MX23A36NF1
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
36
Overall Contact Length:
-
Insulation Height:
0.720" (18.30mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive
Number of Rows:
2
Material Flammability Rating:
-
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Package:
Tube
Row Spacing - Mating:
0.173" (4.40mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.122" (3.10mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
Waterproof
Features:
Board Guide
Mounting Type:
Through Hole, Right Angle
Series:
MX23A
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
MX23A36N
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search MX23A36NF1 on website for other similar products.
We accept all major payment methods for all products including ET12623867. Please check your shopping cart at the time of order.
You can order JAE Electronics brand products with MX23A36NF1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of JAE Electronics MX23A36NF1. You can also check on our website or by contacting our customer support team for further order details on JAE Electronics MX23A36NF1.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12623867 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "JAE Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12623867.
Yes. We ship MX23A36NF1 Internationally to many countries around the world.
This is manufactured by JAE Electronics. The manufacturer part number is MX23A36NF1. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -40°c ~ 125°c operating temperature range. The product carries possible position value of 36. 0.720" (18.30mm) of insulation height. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive. It comes in 2 of rows. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. It is shipped in tube package . It carries 0.173" (4.40mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is 3a. 0.122" (3.10mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. It is IP rated with waterproof. The splendid features of the product include board guide. The product is available in through hole, right angle configuration. The product mx23a, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to mx23a36n, a base product number of the product. The product is designated with the ear99 code number.
