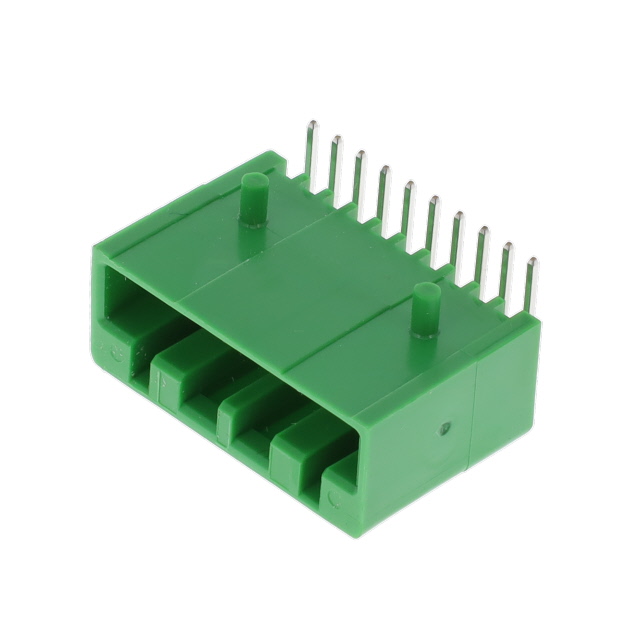

JAE Electronics IL-AG5-10P-S3L2
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
10
Overall Contact Length:
-
Insulation Height:
0.433" (11.00mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive
Number of Rows:
1
Material Flammability Rating:
-
Insulation Color:
Green
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT)
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.331" (8.40mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
3A per Contact
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole, Right Angle
Series:
IL-AG5
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
IL-AG5-1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search IL-AG5-10P-S3L2 on website for other similar products.
We accept all major payment methods for all products including ET12400182. Please check your shopping cart at the time of order.
You can order JAE Electronics brand products with IL-AG5-10P-S3L2 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of JAE Electronics IL-AG5-10P-S3L2. You can also check on our website or by contacting our customer support team for further order details on JAE Electronics IL-AG5-10P-S3L2.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12400182 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "JAE Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12400182.
Yes. We ship IL-AG5-10P-S3L2 Internationally to many countries around the world.
This is manufactured by JAE Electronics. The manufacturer part number is IL-AG5-10P-S3L2. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. The product carries possible position value of 10. 0.433" (11.00mm) of insulation height. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive. It comes in 1 of rows. In addition, green is the insulation color of the product. It has a typical square shape. It has a robust polybutylene terephthalate (pbt) insulation material. It is shipped in bulk package . header Connector type offer robust functionality. It is 0.331" (8.40mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is 3a per contact. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole, right angle configuration. The product il-ag5, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to il-ag5-1, a base product number of the product. The product is designated with the ear99 code number.
