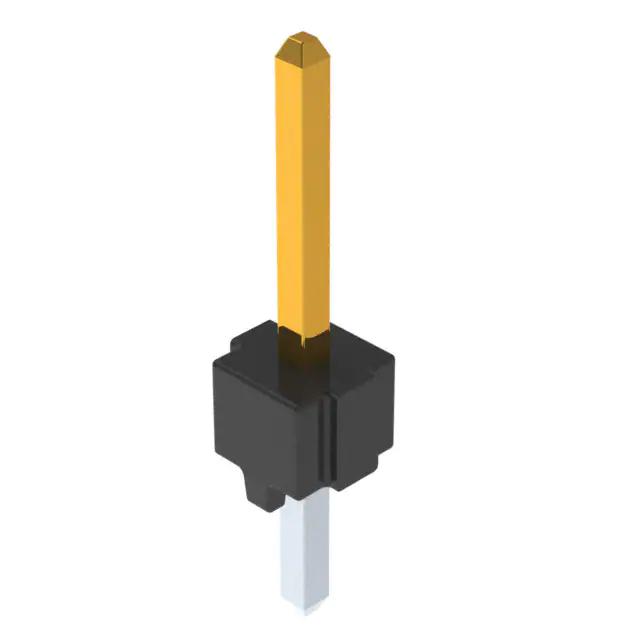

TE Connectivity AMP Connectors 5-146858-1

5-146858-1 TE Connectivity AMP Connectors
5-146858-1
TE Connectivity AMP Connectors

Product Information

Manufacturer Standard Lead Time:
6 Weeks
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Detailed Description:
Connector Header Through Hole 25000, Cuttable position 0.100" (2.54mm)
Operating Temperature:
-65°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
25000, Cuttable
Base Part Number:
146858
Overall Contact Length:
0.440" (11.18mm)
Insulation Height:
0.100" (2.54mm)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Shrouding:
Unshrouded
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
TE Connectivity AMP Connectors
Insulation Color:
Black
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.230" (5.84mm)
Number of Positions Loaded:
All
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
3A
Contact Length - Post:
0.110" (2.79mm)
Pitch - Mating:
0.100" (2.54mm)
Mounting Type:
Through Hole
Series:
AMPMODU
Packaging:
Cut Tape (CT)
Customer Reference:
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Insulation Material:
Thermoplastic
Contact Material:
Copper Alloy
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 5-146858-1. It has typical 6 weeks of manufacturer standard lead time. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It features connector header through hole 25000, cuttable position 0.100" (2.54mm). The product has -65°c ~ 105°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 25000, cuttable. Base Part Number: 146858. The product has a 0.440" (11.18mm) of overall contact lentgh. 0.100" (2.54mm) of insulation height. However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, a bespoke product features unshrouded. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The te connectivity amp connectors's product offers user-desired applications. In addition, black is the insulation color of the product. header, breakaway Connector type offer robust functionality. It is 0.230" (5.84mm) contact mated. However, all is the Number of Positions Loaded. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 3a. 0.110" (2.79mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product ampmodu, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. It has typical contact type of male pin. It has possible tin contact post finishing. It has a robust thermoplastic insulation material. The product is made from sturdy copper alloy materials.
