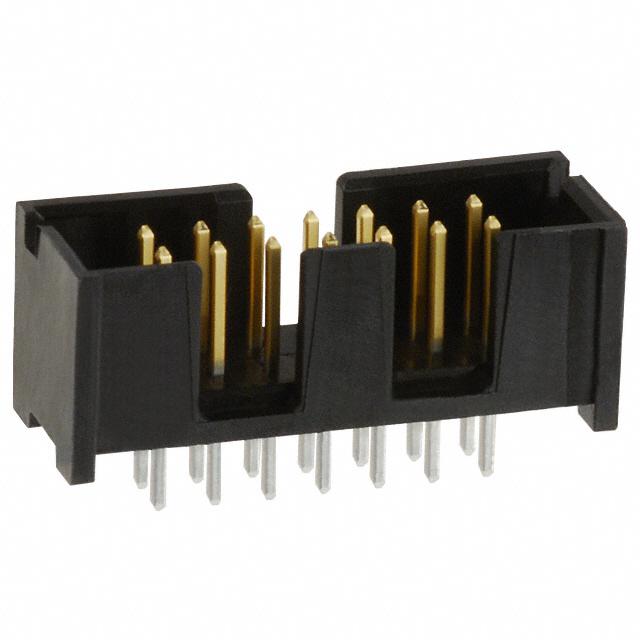

TE Connectivity AMP Connectors 5103308-2

5103308-2 TE Connectivity AMP Connectors
5103308-2
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold or Gold-Palladium
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-65°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
14
Contact Finish - Post:
Tin
edacadModel:
5103308-2 Models
Overall Contact Length:
-
Insulation Height:
0.388" (9.86mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1114899
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
1A per Contact
Contact Length - Post:
0.120" (3.05mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
AMP-Latch
Packaging:
Tube
Insulation Material:
-
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
5103308
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 5103308-2. It has nice contact finishing of gold or gold-palladium. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -65°c ~ 105°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 14. It has possible tin contact post finishing. 0.388" (9.86mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 12 weeks standard lead time. Additionally, the product's output is 1a per contact. 0.120" (3.05mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole configuration. The product amp-latch, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 5103308, a base product number of the product. The product is designated with the ear99 code number.
