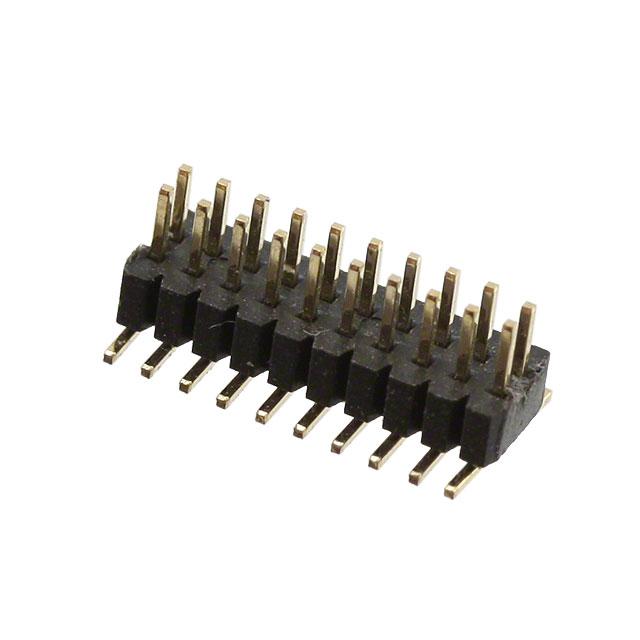

Harwin Inc. M40-3201045R
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
20
Contact Finish - Post:
-
Shrouding:
Unshrouded
Overall Contact Length:
-
Insulation Height:
0.059" (1.50mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
M40-3201045R Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2657722
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA6T), Nylon 6T, Glass Filled
Package:
Tape & Reel (TR)
Row Spacing - Mating:
0.039" (1.00mm)
Connector Type:
Header
Contact Length - Mating:
0.071" (1.80mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
17 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
-
Pitch - Mating:
0.039" (1.00mm)
Ingress Protection:
-
Features:
Board Guide, Pick and Place
Mounting Type:
Surface Mount
Series:
M40
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
M40-320
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search M40-3201045R on website for other similar products.
We accept all major payment methods for all products including ET12149191. Please check your shopping cart at the time of order.
You can order Harwin Inc. brand products with M40-3201045R directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Harwin Inc. M40-3201045R. You can also check on our website or by contacting our customer support team for further order details on Harwin Inc. M40-3201045R.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12149191 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Harwin Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET12149191.
Yes. We ship M40-3201045R Internationally to many countries around the world.
This is manufactured by Harwin Inc.. The manufacturer part number is M40-3201045R. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 20. Furthermore, a bespoke product features unshrouded. 0.059" (1.50mm) of insulation height. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa6t), nylon 6t, glass filled insulation material. It is shipped in tape & reel (tr) package . It carries 0.039" (1.00mm) of row spacing. header Connector type offer robust functionality. It is 0.071" (1.80mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 17 weeks standard lead time. Additionally, the product's output is 1a. It has 0.039" (1.00mm) of pitch-mating value. The splendid features of the product include board guide, pick and place. The product is available in surface mount configuration. The product m40, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to m40-320, a base product number of the product. The product is designated with the ear99 code number.
