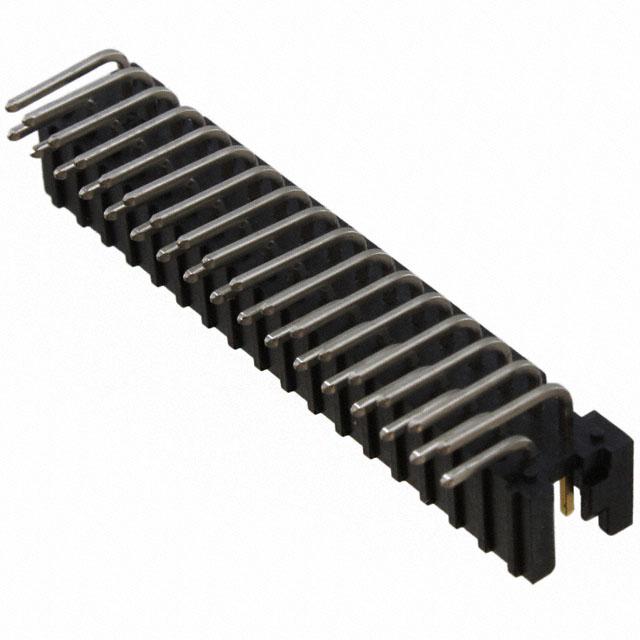

3M 159234-5002
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Number of Positions:
34
Contact Finish - Post:
Tin
edacadModel:
159234-5002 Models
Overall Contact Length:
-
Insulation Height:
0.241" (6.13mm)
Insulation Color:
Black
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2503859
Contact Shape:
Square
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Voltage Rating:
150V
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
0.142" (3.61mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Detent Lock
Termination:
Solder
Current Rating (Amps):
1.25A
Contact Length - Post:
0.112" (2.84mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole, Right Angle
Series:
159
Packaging:
Tray
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Contact Material:
Copper Alloy
Base Product Number:
159234
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 159234-5002 on website for other similar products.
We accept all major payment methods for all products including ET12112875. Please check your shopping cart at the time of order.
You can order 3M brand products with 159234-5002 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 3M 159234-5002. You can also check on our website or by contacting our customer support team for further order details on 3M 159234-5002.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12112875 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "3M" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12112875.
Yes. We ship 159234-5002 Internationally to many countries around the world.
This is manufactured by 3M. The manufacturer part number is 159234-5002. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 34. It has possible tin contact post finishing. 0.241" (6.13mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 150v voltage rating. It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. It is 0.142" (3.61mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1.25a. 0.112" (2.84mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole, right angle configuration. The product 159, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust liquid crystal polymer (lcp), glass filled insulation material. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 159234, a base product number of the product. The product is designated with the ear99 code number.
