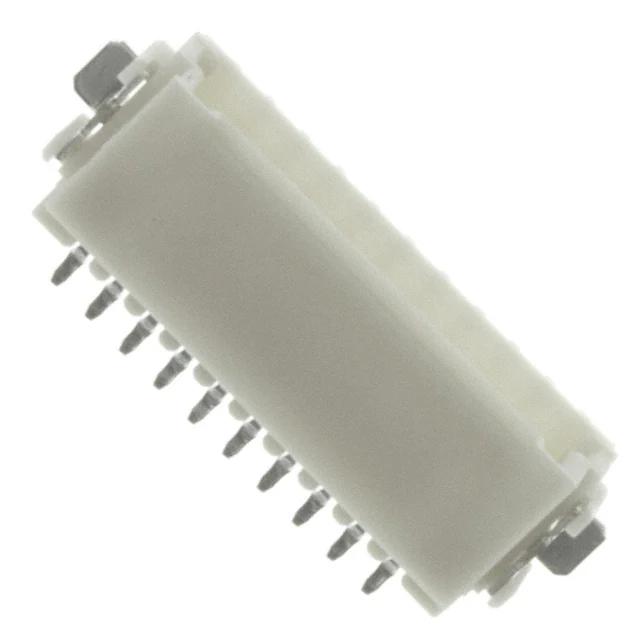

TE Connectivity AMP Connectors 1-292227-0

1-292227-0 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Manufacturer Standard Lead Time:
25 Weeks
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Detailed Description:
Connector Header Surface Mount, Right Angle 10 position 0.059" (1.50mm)
Operating Temperature:
-30°C ~ 105°C
Number of Positions:
10
Base Part Number:
292227
Insulation Height:
0.193" (4.90mm)
Insulation Color:
Beige
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
TE Connectivity AMP Connectors
Voltage Rating:
50VAC
Connector Type:
Header
Contact Length - Mating:
0.094" (2.40mm)
Number of Positions Loaded:
All
Fastening Type:
Detent Lock
Termination:
Solder
Current Rating (Amps):
Varies by Wire Gauge
Pitch - Mating:
0.059" (1.50mm)
Features:
Board Guide, Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
Mini CT
Packaging:
Cut Tape (CT)
Customer Reference:
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Insulation Material:
Polyamide (PA6T), Nylon 6T, Glass Filled
Contact Material:
Brass
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1-292227-0. It has typical 25 weeks of manufacturer standard lead time. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It features connector header surface mount, right angle 10 position 0.059" (1.50mm). The product has -30°c ~ 105°c operating temperature range. The product carries possible position value of 10. Base Part Number: 292227. 0.193" (4.90mm) of insulation height. In addition, beige is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The te connectivity amp connectors's product offers user-desired applications. Moreover, the product has a nominal 50vac voltage rating. header Connector type offer robust functionality. It is 0.094" (2.40mm) contact mated. However, all is the Number of Positions Loaded. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is varies by wire gauge. It has 0.059" (1.50mm) of pitch-mating value. The splendid features of the product include board guide, solder retention. The product is available in surface mount, right angle configuration. The product mini ct, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. It has typical contact type of male pin. It has possible tin contact post finishing. It has a robust polyamide (pa6t), nylon 6t, glass filled insulation material. The product is made from sturdy brass materials.
