Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
16
Contact Finish - Post:
Tin
edacadModel:
N2516-6002-RB Models
Overall Contact Length:
-
title:

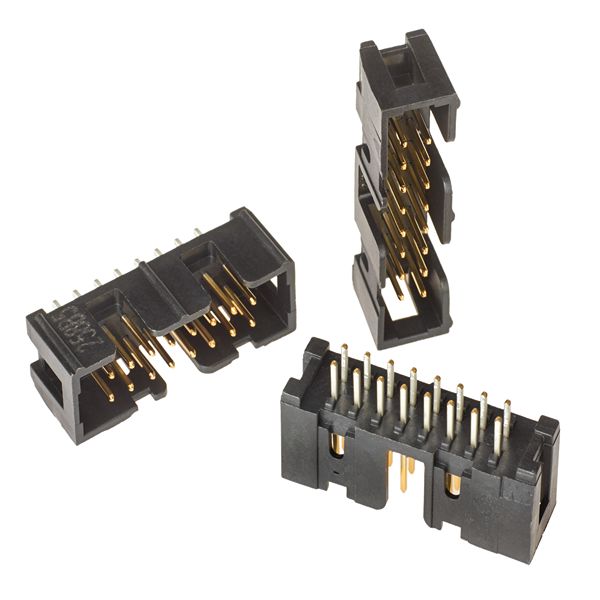

N2516-6002-RB
Insulation Height:
0.390" (9.91mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/755178
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.243" (6.17mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
1.75A
Contact Length - Post:
0.112" (2.84mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
2500
Packaging:
Bulk
Insulation Material:
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
N2516
ECCN:
EAR99
Contact Material:
Copper Alloy
Tail Pin Length:
2.84mm
Number of Contacts:
16
Orientation:
Right Angle
Housing Material:
Glass Filled Polyester
Shrouded/Unshrouded:
Unshrouded
Series:
2500
Row Pitch:
2.54mm
Current:
5A
Number of Rows:
2
Standards/Approvals:
EIA-364-070, J-STD-020C, UL94V-0
Voltage:
1000 Vrms
Contact Plating:
Gold, Gold Flash, Matt Tin, Nickel
Pitch:
2.54mm
Mating Pin Length:
6.17mm
Termination Type:
Solder
Product Type:
PCB Header
Maximum Operating Temperature:
105°C
Minimum Operating Temperature:
-55°C
Mount Type:
Through Hole
