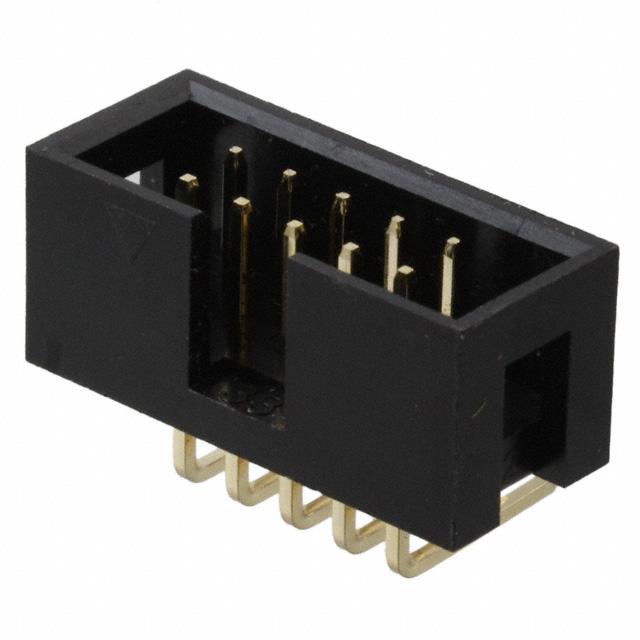

On Shore Technology Inc. 302-R101
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
1.25µin (0.032µm)
Number of Positions:
10
Contact Finish - Post:
Gold
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.358" (9.10mm)
Voltage Rating:
250V
REACH Status:
REACH Unaffected
edacadModel:
302-R101 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2794244
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyester, Glass Filled
Package:
Tray
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
8 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.122" (3.10mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole, Right Angle
Series:
302
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
302-R10
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 302-R101 on website for other similar products.
We accept all major payment methods for all products including ET11859627. Please check your shopping cart at the time of order.
You can order On Shore Technology Inc. brand products with 302-R101 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of On Shore Technology Inc. 302-R101. You can also check on our website or by contacting our customer support team for further order details on On Shore Technology Inc. 302-R101.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11859627 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "On Shore Technology Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET11859627.
Yes. We ship 302-R101 Internationally to many countries around the world.
This is manufactured by On Shore Technology Inc.. The manufacturer part number is 302-R101. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 1.25µin (0.032µm) of post thickness. The product carries possible position value of 10. It has possible gold contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.358" (9.10mm) of insulation height. Moreover, the product has a nominal 250v voltage rating. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polyester, glass filled insulation material. It is shipped in tray package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 8 weeks standard lead time. Additionally, the product's output is 3a. 0.122" (3.10mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole, right angle configuration. The product 302, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 302-r10, a base product number of the product. The product is designated with the ear99 code number.
