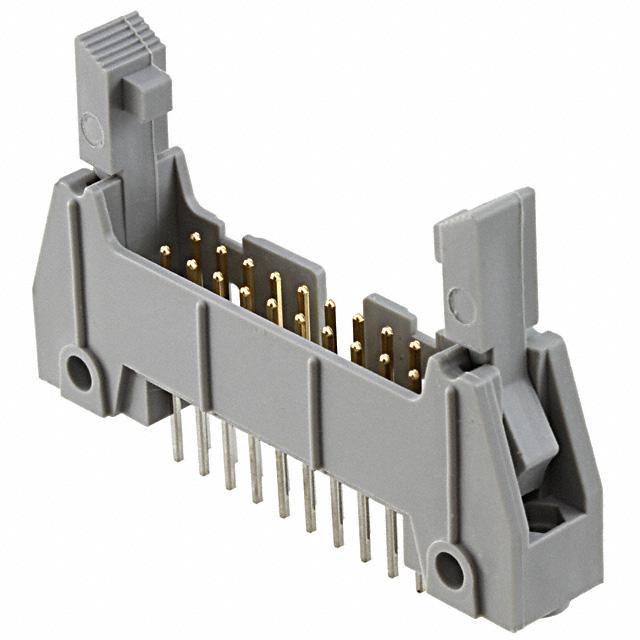

3M 3428-6302
Product Information
Current Rating:
1.75A
Mounting Type:
Through Hole
Series:
3000
Body Orientation:
Straight
Termination Method:
Solder
Shrouded:
Shrouded
Number of Rows:
2
Pitch:
2.54mm
Number of Contacts:
20
Type:
Header With Long Ejector, Latcher
Contact Material:
Copper Alloy
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
20
Contact Finish - Post:
Tin-Lead
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
0.652" (16.56mm)
Insulation Height:
0.680" (17.27mm)
Voltage Rating:
-
edacadModel:
3428-6302 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1237718
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Package:
Tray
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Lock/Eject Hooks, Long
Termination:
Solder
Current Rating (Amps):
1A
Contact Length - Post:
0.112" (2.84mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot, Mounting Flange
Mounting Type:
Through Hole
Series:
3000
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
3428
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 3428-6302 on website for other similar products.
We accept all major payment methods for all products including ET11854823. Please check your shopping cart at the time of order.
You can order 3M brand products with 3428-6302 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 3M 3428-6302. You can also check on our website or by contacting our customer support team for further order details on 3M 3428-6302.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11854823 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "3M" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11854823.
Yes. We ship 3428-6302 Internationally to many countries around the world.
This is manufactured by 3M. The manufacturer part number is 3428-6302. The product has a current rating of 1.75a. The product is available in through hole configuration. The product 3000, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It is shrouded . It comes in 2 of rows. Moreover, the product is 2.54mm. The product contains 20 contacts. It comes in header with long ejector, latcher configuration. The product is made from sturdy copper alloy materials. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features 200.0µin (5.08µm) of post thickness. The product carries possible position value of 20. It has possible tin-lead contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. The product has a 0.652" (16.56mm) of overall contact lentgh. 0.680" (17.27mm) of insulation height. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polybutylene terephthalate (pbt), polyester, glass filled insulation material. It is shipped in tray package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch lock/eject hooks, long is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1a. 0.112" (2.84mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot, mounting flange. It has typical contact type of male pin. Moreover, it corresponds to 3428, a base product number of the product. The product is designated with the ear99 code number.
