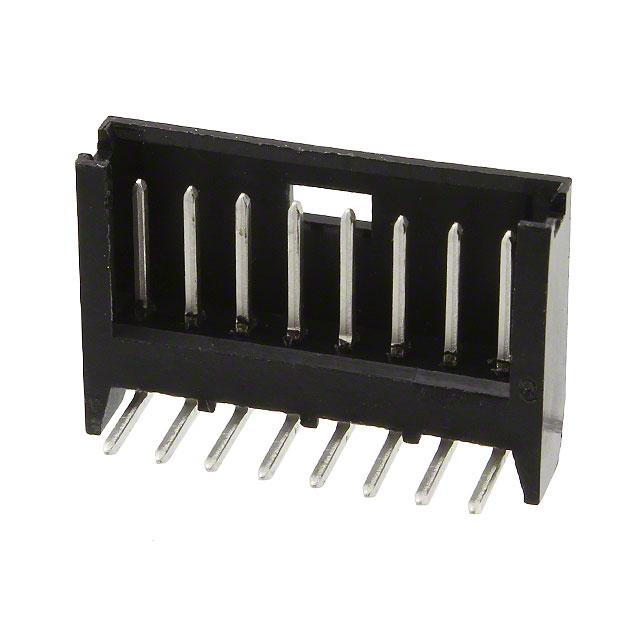

TE Connectivity AMP Connectors 280380-1

280380-1 TE Connectivity AMP Connectors
280380-1
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 80°C
Contact Finish Thickness - Post:
118.1µin (3.00µm)
Number of Positions:
8
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 3 Wall
Overall Contact Length:
-
Insulation Height:
0.197" (5.00mm)
Voltage Rating:
40V
REACH Status:
Vendor Undefined
edacadModel:
280380-1 Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3488600
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Thermoplastic
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.260" (6.60mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
118.1µin (3.00µm)
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
48 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
AMPMODU Mod II
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
280380
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 280380-1. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 80°c operating temperature range. Additionally, it features 118.1µin (3.00µm) of post thickness. The product carries possible position value of 8. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 3 wall. 0.197" (5.00mm) of insulation height. Moreover, the product has a nominal 40v voltage rating. In addition, it is vendor undefined. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust thermoplastic insulation material. It is shipped in bulk package . header Connector type offer robust functionality. It is 0.260" (6.60mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 118.1µin (3.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 48 weeks standard lead time. Additionally, the product's output is 3a. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product ampmodu mod ii, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 280380, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Devices Drawing 16/Mar/2016(PCN Design/Specification)
pdf icon
Multiple Devices Material 04/Mar/2019(PCN Design/Specification)
pdf icon
280380-1(Datasheets)
