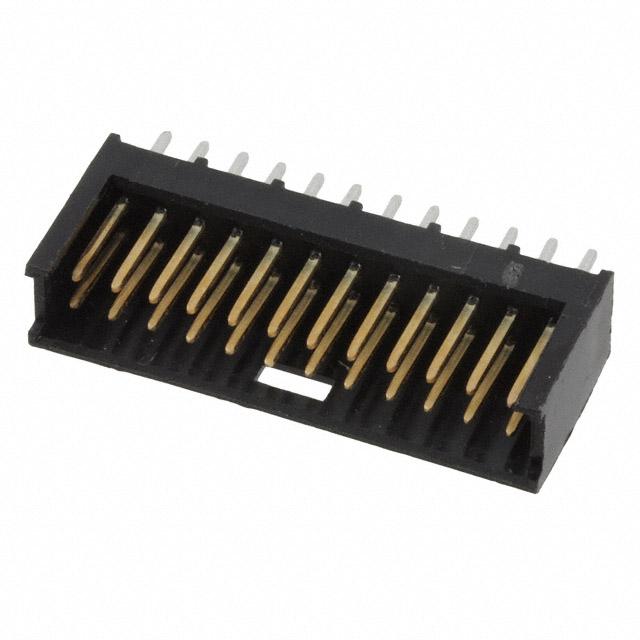

TE Connectivity AMP Connectors 280521-2
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 80°C
Contact Finish Thickness - Post:
98.4µin (2.50µm)
Number of Positions:
24
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 3 Wall
Overall Contact Length:
0.563" (14.30mm)
Insulation Height:
0.496" (12.60mm)
Voltage Rating:
40V
REACH Status:
Vendor Undefined
edacadModel:
280521-2 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1150087
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Thermoplastic
Package:
Bulk
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.260" (6.60mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
48 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
AMPMODU Mod II
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
280521
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 280521-2 on website for other similar products.
We accept all major payment methods for all products including ET11801259. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 280521-2 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 280521-2. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 280521-2.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11801259 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11801259.
Yes. We ship 280521-2 Internationally to many countries around the world.
This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 280521-2. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -40°c ~ 80°c operating temperature range. Additionally, it features 98.4µin (2.50µm) of post thickness. The product carries possible position value of 24. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 3 wall. The product has a 0.563" (14.30mm) of overall contact lentgh. 0.496" (12.60mm) of insulation height. Moreover, the product has a nominal 40v voltage rating. In addition, it is vendor undefined. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust thermoplastic insulation material. It is shipped in bulk package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.260" (6.60mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 48 weeks standard lead time. Additionally, the product's output is 3a. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product ampmodu mod ii, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 280521, a base product number of the product. The product is designated with the ear99 code number.
