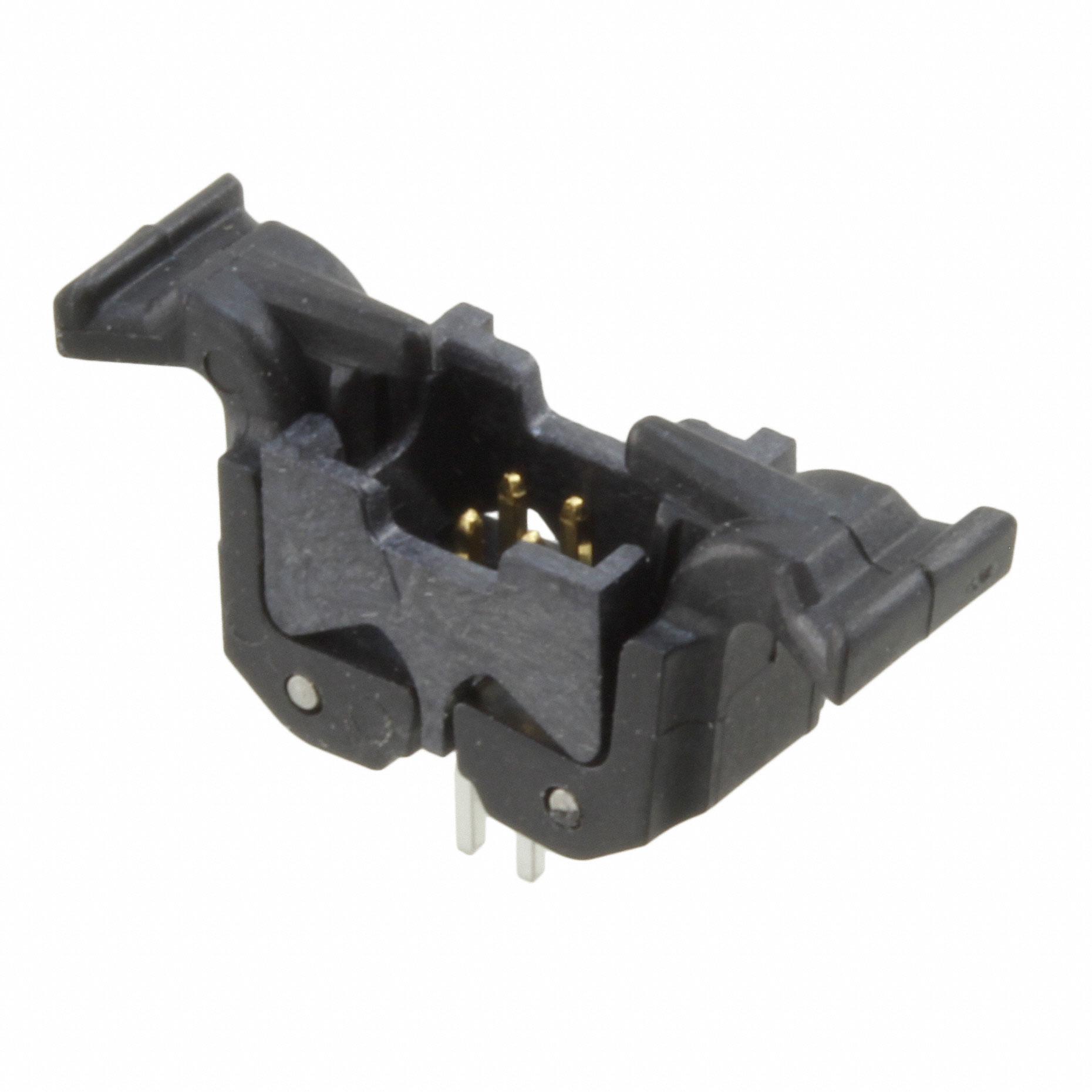

3M 45204-620230
Product Information
Shrouded/Unshrouded:
Shrouded
Current Rating:
1A
Mounting Type:
Through Hole
Series:
452
Body Orientation:
Straight
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Contact Plating:
Gold
Pitch:
1.27mm
Number of Contacts:
4
Contact Material:
Copper Alloy
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 125°C
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
4
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.222" (5.65mm)
Voltage Rating:
125V
REACH Status:
REACH Unaffected
edacadModel:
45204-620230 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4475170
Insulation Color:
-
Contact Shape:
Square
Mated Stacking Heights:
5.84mm, 6.60mm, 7.21mm, 8.13mm
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tray
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Lock/Eject Hooks, Short
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
0.094" (2.40mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
452
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
45204
ECCN:
EAR99
