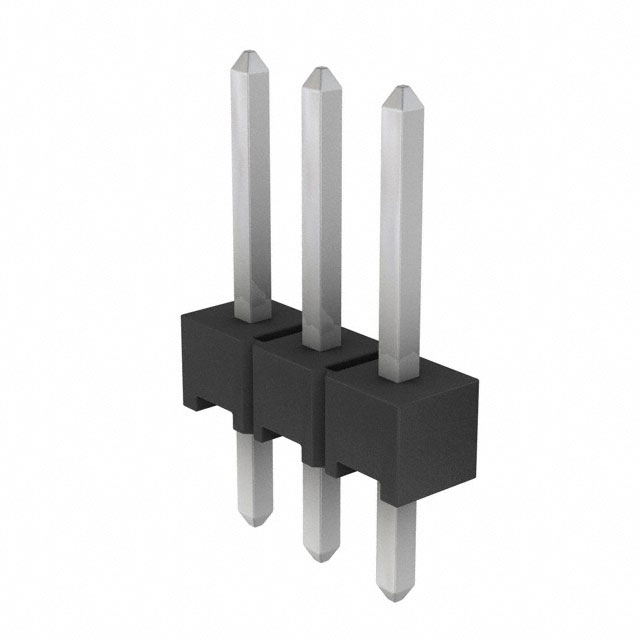

TE Connectivity AMP Connectors 146282-3
Product Information
Contact Finish - Mating:
Tin-Lead
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-65°C ~ 105°C
Number of Positions:
3
Contact Finish - Post:
Tin-Lead
edacadModel:
146282-3 Models
Overall Contact Length:
0.410" (10.41mm)
Insulation Height:
0.090" (2.29mm)
Insulation Color:
Black
REACH Status:
REACH Affected
Shrouding:
Unshrouded
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1136435
Contact Shape:
Square
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.230" (5.84mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
3A
Contact Length - Post:
0.090" (2.29mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
AMPMODU Mod II
Packaging:
Bulk
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Material:
Copper Alloy
Base Product Number:
146282
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 146282-3 on website for other similar products.
We accept all major payment methods for all products including ET11774372. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 146282-3 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 146282-3. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 146282-3.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11774372 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11774372.
Yes. We ship 146282-3 Internationally to many countries around the world.
This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 146282-3. It has nice contact finishing of tin-lead. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -65°c ~ 105°c operating temperature range. The product carries possible position value of 3. It has possible tin-lead contact post finishing. The product has a 0.410" (10.41mm) of overall contact lentgh. 0.090" (2.29mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach affected. Furthermore, a bespoke product features unshrouded. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. header, breakaway Connector type offer robust functionality. It is 0.230" (5.84mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 3a. 0.090" (2.29mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product ampmodu mod ii, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 146282, a base product number of the product. The product is designated with the ear99 code number.
