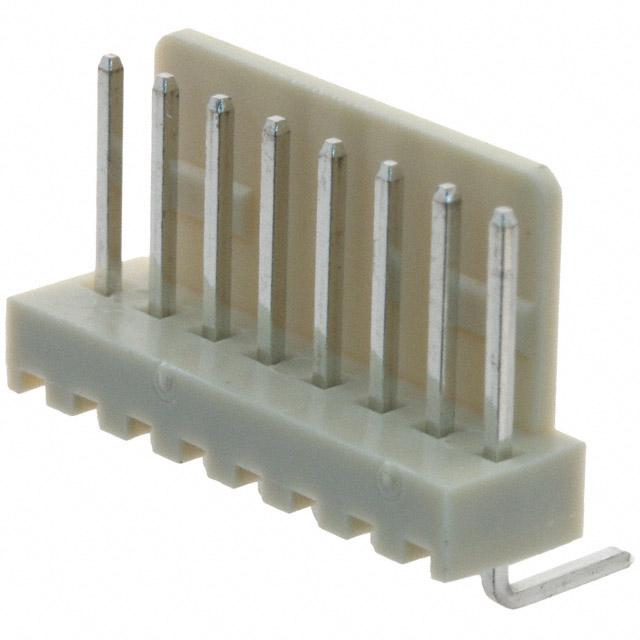

Sullins Connector Solutions SWR25X-NRTC-S08-RB-BA

SWR25X-NRTC-S08-RB-BA Sullins Connector Solutions
Sullins Connector Solutions

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
8
Overall Contact Length:
-
title:
SWR25X-NRTC-S08-RB-BA
Insulation Height:
0.228" (5.80mm)
Insulation Color:
Beige
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 1 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
250V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.303" (7.70mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Friction Lock
Termination:
Solder
standardLeadTime:
11 Weeks
Current Rating (Amps):
5A per Contact
Contact Length - Post:
0.134" (3.40mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
SWR25X
Packaging:
Bulk
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
SWR25X
ECCN:
EAR99
Checking for live stock

This is manufactured by Sullins Connector Solutions. The manufacturer part number is SWR25X-NRTC-S08-RB-BA. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 85°c operating temperature range. The product carries possible position value of 8. 0.228" (5.80mm) of insulation height. In addition, beige is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 1 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 250v voltage rating. header Connector type offer robust functionality. It is 0.303" (7.70mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. It has a long 11 weeks standard lead time. Additionally, the product's output is 5a per contact. 0.134" (3.40mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product swr25x, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to swr25x, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
SWR25X-NRTC-Sxx-Rx-BA Drawing(Product Drawings)
pdf icon
Sullins Connector Solutions RoHS Cert(Environmental Information)
pdf icon
Sullins Connector Solutions REACH(Environmental Information)
