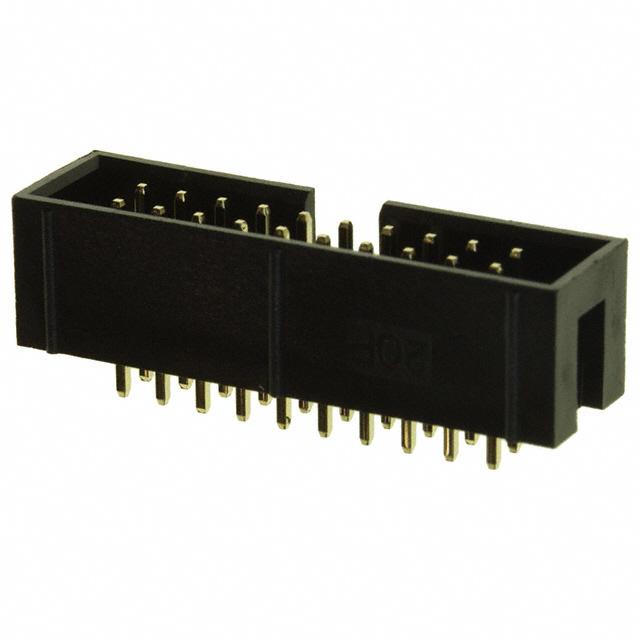

Sullins Connector Solutions SBH11-PBPC-D10-ST-BK

SBH11-PBPC-D10-ST-BK Sullins Connector Solutions
Sullins Connector Solutions

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
20
Contact Finish - Post:
Gold
edacadModel:
SBH11-PBPC-D10-ST-BK Models
Overall Contact Length:
-
Insulation Height:
0.358" (9.10mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1990065
Contact Shape:
Square
Mated Stacking Heights:
9.65mm, 11.2mm, 13.35mm, 18.35mm
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
11 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.118" (3.00mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
SBH11
Packaging:
Tray
Insulation Material:
Polybutylene Terephthalate (PBT)
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
SBH11
ECCN:
EAR99
local
1 - In Stock

Ships in 2-3 business days

Quantity
Unit Price (ex VAT)
Price
1
£ 0.48
£ 0.48
Mfr Part No:
SBH11-PBPC-D10-ST-BK
Seller:
Sullins Connector Solutions (local)
Origin:
Warranty:
Manufacturer
Data Code:
ET11709341
Order Today!
From: United Kingdom
Est Ship Date: 16 Dec, 2024
Est Fastest Delivery: 17 Dec, 2024

The Sullins Connector Solutions SBH11-PBPC-D10-ST-BK is a high-quality connector header designed for through-hole mounting with 20 positions spaced at 0.100 inches (2.54mm). With its robust build and precise engineering, this connector offers reliability and versatility for a wide range of applications. It features durable housing and precision-machined contacts. The through-hole design ensures secure mounting on PCBs, while the 20-position configuration allows for seamless integration into various electronic systems. The connector's black colour adds a sleek aesthetic touch to any assembly.

Unique Benefits and Features of the Connector

  • Built to withstand mechanical stress and environmental factors, ensuring long-term reliability.
  • Precision-machined contacts ensure consistent electrical connectivity for optimal signal transmission.
  • The through-hole design enables secure mounting on PCBs, minimising the risk of disconnection or damage.
  • With 20 positions spaced at 0.100 inches, the connector offers versatility for various electronic applications.
  • Low contact resistance and high current-carrying capacity ensure reliable performance.
  • The black housing adds a professional and aesthetic touch to electronic assemblies.

Electrical Performance

This connector header ensures excellent electrical performance, with low contact resistance and high current-carrying capacity. Each contact point is engineered to maintain consistent connectivity, minimise signal loss, and maximise transmission efficiency. The connector is capable of withstanding demanding operating conditions, making it suitable for industrial-grade applications.

The Sullins Connector Solutions SBH11-PBPC-D10-ST-BK, Connector Header: Use Cases

The SBH11-PBPC-D10-ST-BK connector header finds application across diverse industries and electronic systems, including:

  • Industrial Automation: Used in control panels, PLCs, and machinery for reliable signal transmission.
  • Telecommunications: Employed in networking equipment and communication devices for data connectivity.
  • Consumer Electronics: Integrated into devices such as gaming consoles, audio equipment, and home appliances.
  • Automotive Electronics: Utilised in vehicle control modules, infotainment systems, and dashboard displays.
  • Medical Devices: Incorporated into diagnostic equipment, patient monitoring systems, and medical instruments.
