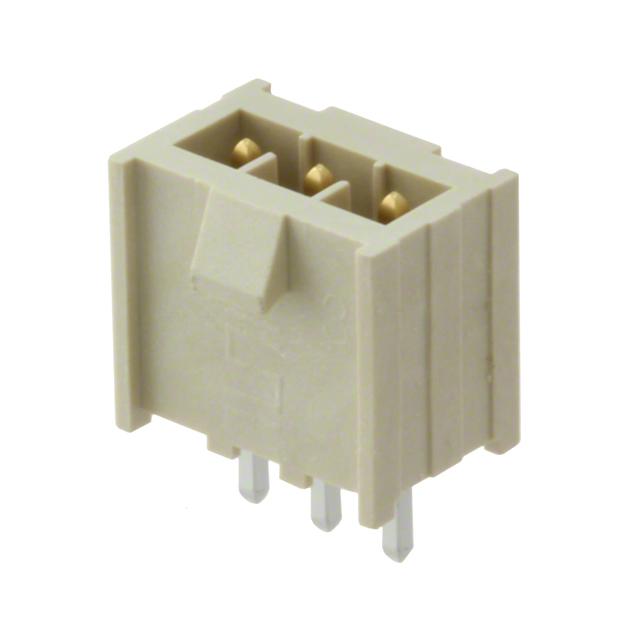

Samtec Inc. IPL1-103-01-L-S-K

Enrgtech Part No: ET11687335
|
Manufacturer Part No:
IPL1-103-01-L-S-K
|
Manufacturer: Samtec Inc.

Product Information

The IPL1-103-01-L-S-K supplied by Samtec Inc. proves the firm's adherence to exemplary electronic interconnects. Its precise pitch and versatile layout make this connector convenient for various devices, from consumer electronics to industrial machinery.

Contact Finish - Mating:

Gold

Style:

Board to Cable/Wire

HTSUS:

8536.69.4040

RoHS Status:

ROHS3 Compliant

Operating Temperature:

-55°C ~ 125°C

Number of Positions:

Contact Finish - Post:

Tin

edacadModel:

IPL1-103-01-L-S-K Models

Overall Contact Length:

Insulation Height:

0.320" (8.13mm)

Insulation Color:

Natural

REACH Status:

REACH Unaffected

Checking for live stock

Samtec Inc. has carved a niche for itself in electronic interconnect solutions. The IPL1-103-01-L-S-K is a shining example of the firm's dedication to producing high-quality connectors catering to various applications and industries.

Key Attributes:

Connector Type: This product is a connector header designed to facilitate seamless connections in electronic circuits.
Mounting Style: The through-hole design ensures that the connector is securely anchored to the PCB, providing a stable and reliable connection.
Pin Configuration: With a 3-position layout, this connector is versatile, catering to various electronic configurations.
Pitch Precision: The 0.100" (2.54mm) pitch ensures that the pins are spaced accurately, allowing for optimal signal transmission and reduced interference.

Where Does it Fit? Applications and Use-Cases

The IPL1-103-01-L-S-K is not limited to a single application. Its layout and features make it appropriate for various electronic devices, from consumer electronics to industrial machinery. Its reliability ensures that it's a favoured selection for specialists and hobbyists.

IPL1 Series Datasheet 02(HTML Datasheet)

IPL1 Series Datasheet(Datasheets)

IPD1 Series Other Related Documents 03(Other Related Documents)

IPL1 Series Other Related Documents 01(Other Related Documents)

IPL1-1yy-yy-yyy-S-yy-y-yy Drawing(Product Drawings)
