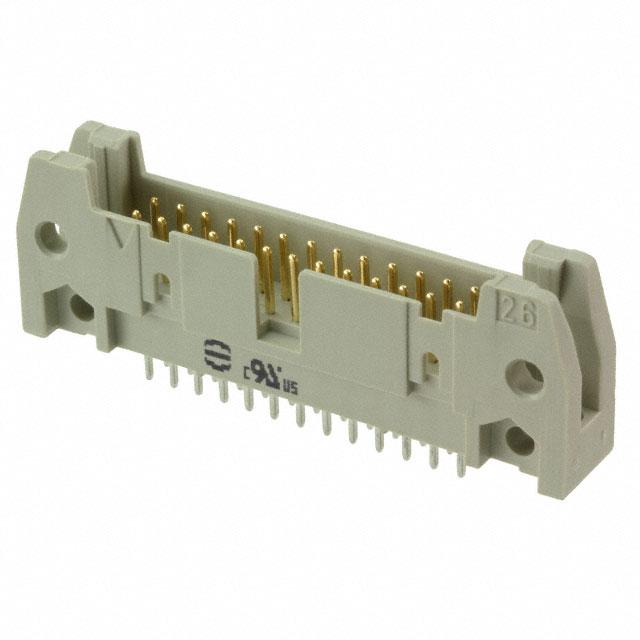

HARTING 09185266924

09185266924 HARTING
09185266924
09185266924
HARTING

Product Information

Shrouded/Unshrouded:
Shrouded
Mounting Type:
Through Hole
Series:
SEK 18
Body Orientation:
Straight
Termination Method:
Solder
Connector System:
Wire to Board
Number of Rows:
2
Contact Plating:
Gold
Pitch:
2.54mm
Number of Contacts:
26
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
26
Contact Finish - Post:
Tin
edacadModel:
09185266924 Models
Overall Contact Length:
0.650" (16.51mm)
title:
09185266924
Insulation Height:
0.681" (17.30mm)
Insulation Color:
Gray
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4336263
Contact Shape:
Square
Contact Finish Thickness - Mating:
-
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
9 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.114" (2.90mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot, Mounting Flange
Mounting Type:
Through Hole
Series:
SEK
Packaging:
Bulk
Mated Stacking Heights:
-
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 09185266924. It is supplied as shrouded. The product is available in through hole configuration. The product sek 18, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It allows wire to board connector system. It comes in 2 of rows. The high-quality gold is used as contact plating material. Moreover, the product is 2.54mm. The product contains 26 contacts. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 26. It has possible tin contact post finishing. The product has a 0.650" (16.51mm) of overall contact lentgh. 0.681" (17.30mm) of insulation height. In addition, gray is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 9 weeks standard lead time. 0.114" (2.90mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot, mounting flange. The product sek, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. The product is designated with the ear99 code number.
