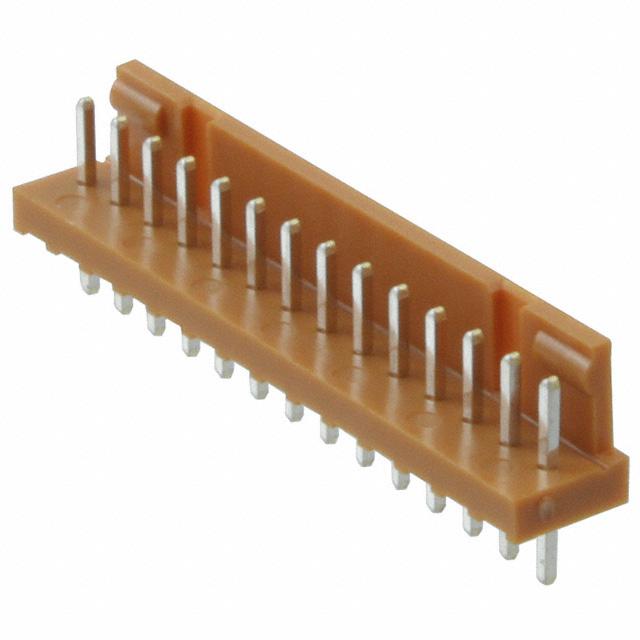

JAE Electronics IL-G-14P-S3T2-SA
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
14
Overall Contact Length:
0.378" (9.60mm)
Insulation Height:
0.280" (7.10mm)
Voltage Rating:
-
Shrouding:
Shrouded - 1 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Insulation Color:
Brown
Contact Shape:
Square
Mated Stacking Heights:
10mm
Insulation Material:
Polyamide (PA66), Nylon 6/6
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.157" (4.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Friction Lock
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
3A per Contact
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
IL-G
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
IL-G-14P
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search IL-G-14P-S3T2-SA on website for other similar products.
We accept all major payment methods for all products including ET11586824. Please check your shopping cart at the time of order.
You can order JAE Electronics brand products with IL-G-14P-S3T2-SA directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of JAE Electronics IL-G-14P-S3T2-SA. You can also check on our website or by contacting our customer support team for further order details on JAE Electronics IL-G-14P-S3T2-SA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11586824 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "JAE Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11586824.
Yes. We ship IL-G-14P-S3T2-SA Internationally to many countries around the world.
This is manufactured by JAE Electronics. The manufacturer part number is IL-G-14P-S3T2-SA. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -40°c ~ 85°c operating temperature range. The product carries possible position value of 14. The product has a 0.378" (9.60mm) of overall contact lentgh. 0.280" (7.10mm) of insulation height. Furthermore, a bespoke product features shrouded - 1 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, brown is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 10mm. It has a robust polyamide (pa66), nylon 6/6 insulation material. It is shipped in bulk package . header Connector type offer robust functionality. It is 0.157" (4.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is 3a per contact. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The product is available in through hole configuration. The product il-g, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to il-g-14p, a base product number of the product. The product is designated with the ear99 code number.
