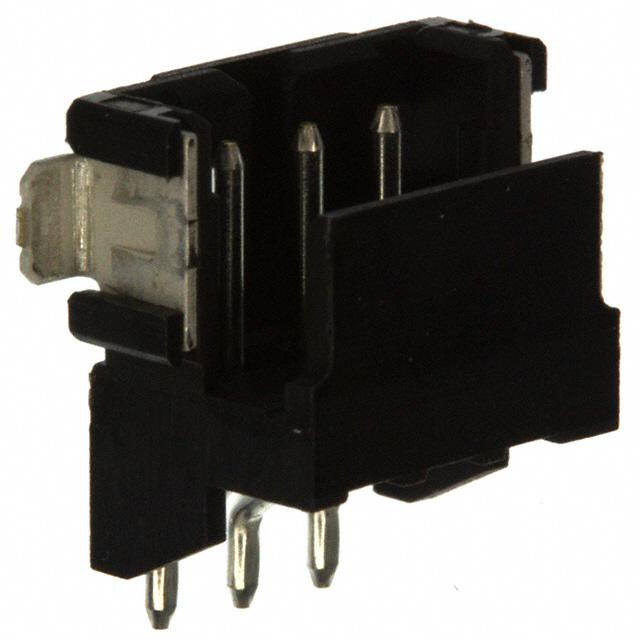

TE Connectivity AMP Connectors 292173-3

292173-3 TE Connectivity AMP Connectors
292173-3
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
3
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.228" (5.80mm)
Voltage Rating:
125VAC
REACH Status:
REACH Unaffected
edacadModel:
292173-3 Models
Applications:
General Purpose
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1855295
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA6T), Nylon 6T, Glass Filled
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.165" (4.20mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Board Guide, Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
CT
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
292173
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 292173-3. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 3. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.228" (5.80mm) of insulation height. Moreover, the product has a nominal 125vac voltage rating. In addition, it is reach unaffected. The product is widely employed in general purpose. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa6t), nylon 6t, glass filled insulation material. It is shipped in tape & reel (tr) package . header Connector type offer robust functionality. It is 0.165" (4.20mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is varies by wire gauge. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include board guide, solder retention. The product is available in surface mount, right angle configuration. The product ct, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 292173, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
y-29217y-y - material chg 28/JAN/2021(PCN Design/Specification)
pdf icon
292173-3(Datasheets)
pdf icon
Packaging chg 08/AUG/2023(PCN Packaging)
pdf icon
Multiple Devices Packaging 19/Oct/2017(PCN Packaging)
pdf icon
292173-3.pdf(3D Drawings)
