Harwin Inc. M80-5T10605M2-04-331-00-000
Product Information
The M80-5T10605M2-04-331-00-000 from Harwin Inc. is a high-performance and reliable connector header with elegant designs and contacts for separate and convenient connectivity solutions for a range of power and signal applications.
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
10 (6 + 4 Power)
Overall Contact Length:
-
Insulation Height:
0.220" (5.60mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Circular
Mated Stacking Heights:
7.3mm, 9.75mm
Insulation Material:
Polyphenylene Sulfide (PPS), Glass Filled
Package:
Tube
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Threaded
Termination:
Solder
standardLeadTime:
17 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Mounting Type:
Through Hole
Series:
Datamate Mix-Tek
Contact Type:
Male Pin
Contact Material:
-
Base Product Number:
M80-5T1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search M80-5T10605M2-04-331-00-000 on website for other similar products.
We accept all major payment methods for all products including ET11364943. Please check your shopping cart at the time of order.
You can order Harwin Inc. brand products with M80-5T10605M2-04-331-00-000 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Harwin Inc. M80-5T10605M2-04-331-00-000. You can also check on our website or by contacting our customer support team for further order details on Harwin Inc. M80-5T10605M2-04-331-00-000.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11364943 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Harwin Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET11364943.
Yes. We ship M80-5T10605M2-04-331-00-000 Internationally to many countries around the world.

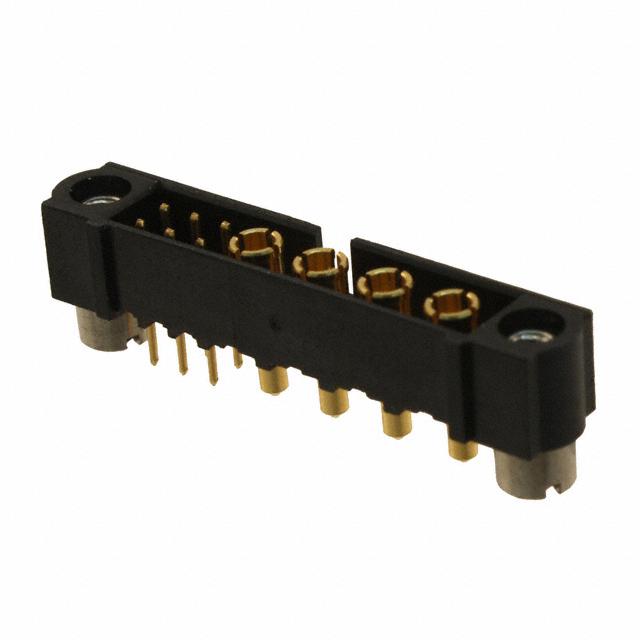

The Harwin Inc. M80-5T10605M2-04-331-00-000 is a power-to-board connector header with 10 assembled contacts (6 for signal and 4 for power) for vertical PCB connection solutions. The product integrates 3 mm-long PC tail signal contacts and 3.5 mm-long PC tail power contacts. This through-hole connector header is a high-performance unit, allowing for extreme reliability and secure system connections for your systems. Moreover, the threaded fastening module has a solder termination with circular gold-plated contacts. The product is insulated with a glass-filled polyphenylene sulphide and has 5.60 mm height. The M80-5T10605M2-04-331-00-000 has a UL94 V-0 material flammability rating with an operating temperature of -55 °C to 125 °C. In addition, the insulation housing of the connector header ensures robust safety and an uninterruptible power supply.
Why Buy Harwin Inc. M80-5T10605M2-04-331-00-000?
Harwin Inc.’s M80-5T10605M2-04-331-00-000 offers multiple benefits, such as:
Do I Get Nuts with Harwin Inc. M80-5T10605M2-04-331-00-000?
This connector header is provided with the given nuts, and you do not need to buy them separately.
What are the torque value requirements for Jackscrews?
The 21± 2 cmN of torque value is for panel mounting, while for mating jackscrews, the maximum value is 23 cmN.
