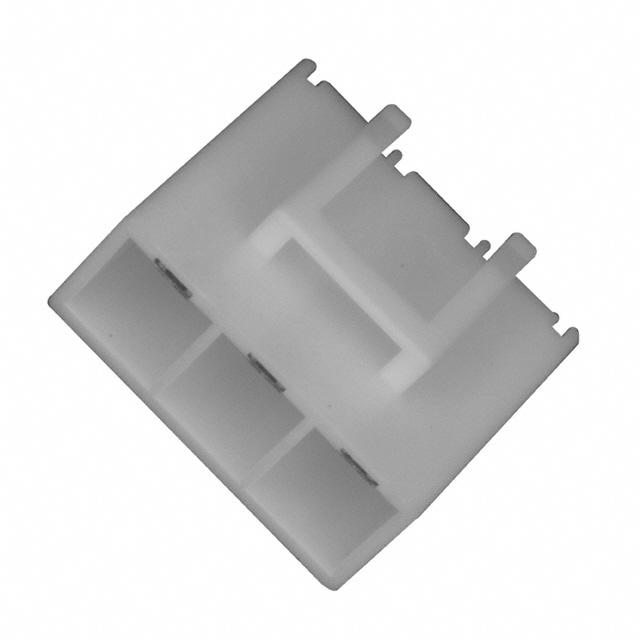

JST Sales America Inc. B03P-VL

B03P-VL JST Sales America Inc.
B03P-VL
JST Sales America Inc.

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 90°C
Contact Finish Thickness - Post:
-
Number of Positions:
3
Overall Contact Length:
-
title:
B03P-VL
Insulation Height:
0.646" (16.40mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Mated Stacking Heights:
29.2mm
Voltage Rating:
600V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
20A
Contact Length - Post:
0.142" (3.60mm)
Pitch - Mating:
0.244" (6.20mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
VL
Packaging:
Bulk
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
B03P
ECCN:
EAR99
Checking for live stock

This is manufactured by JST Sales America Inc.. The manufacturer part number is B03P-VL. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 90°c operating temperature range. The product carries possible position value of 3. 0.646" (16.40mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The mated stacking heights of a bespoke product includes 29.2mm. Moreover, the product has a nominal 600v voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 20a. 0.142" (3.60mm) is the given possible contact length (post) values. It has 0.244" (6.20mm) of pitch-mating value. The product is available in through hole configuration. The product vl, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to b03p, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
VL Series Datasheet(Datasheets)
pdf icon
BM04B-ACHSS-A-GAN-TF(Datasheets)
pdf icon
ASVFSVF14K305 Drawing(Product Drawings)
pdf icon
ASVFSVF14K254 Drawing(Product Drawings)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search B03P-VL on website for other similar products.
We accept all major payment methods for all products including ET11189334. Please check your shopping cart at the time of order.
You can order JST Sales America Inc. brand products with B03P-VL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of JST Sales America Inc. B03P-VL. You can also check on our website or by contacting our customer support team for further order details on JST Sales America Inc. B03P-VL.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11189334 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "JST Sales America Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET11189334.
Yes. We ship B03P-VL Internationally to many countries around the world.
