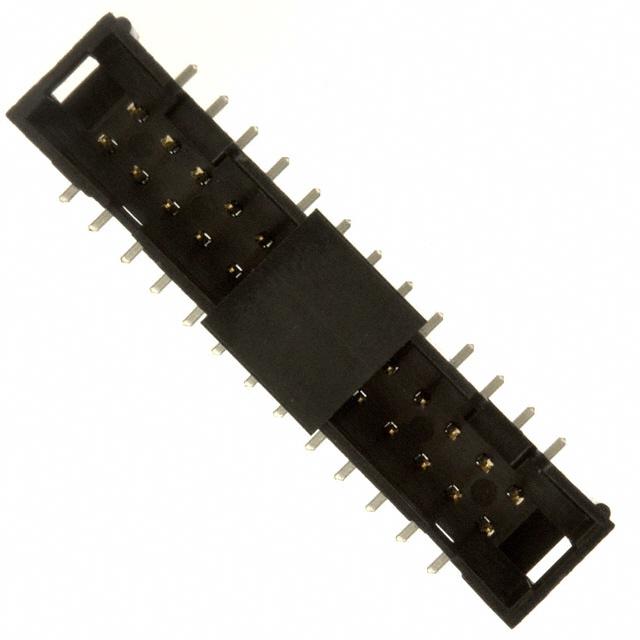

3M N2526-6V0C-RB-WE
Product Information
Shrouded/Unshrouded:
Shrouded
Current Rating:
1.75A
Mounting Type:
Surface Mount
Series:
2500
Body Orientation:
Straight
Termination Method:
Solder
Connector System:
Board to Board, Wire to Board
Number of Rows:
2
Contact Plating:
Gold
Pitch:
2.54mm
Number of Contacts:
26
Contact Material:
Copper Alloy
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
26
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.390" (9.91mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
N2526-6V0C-RB-WE Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1125439
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Package:
Tape & Reel (TR)
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.243" (6.17mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
23 Weeks
Current Rating (Amps):
1.75A
Contact Length - Post:
-
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot, Pick and Place
Mounting Type:
Surface Mount
Series:
2500
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
N2526
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search N2526-6V0C-RB-WE on website for other similar products.
We accept all major payment methods for all products including ET11189189. Please check your shopping cart at the time of order.
You can order 3M brand products with N2526-6V0C-RB-WE directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 3M N2526-6V0C-RB-WE. You can also check on our website or by contacting our customer support team for further order details on 3M N2526-6V0C-RB-WE.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11189189 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "3M" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11189189.
Yes. We ship N2526-6V0C-RB-WE Internationally to many countries around the world.
This is manufactured by 3M. The manufacturer part number is N2526-6V0C-RB-WE. It is supplied as shrouded. The product has a current rating of 1.75a. The product is available in surface mount configuration. The product 2500, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It allows board to board, wire to board connector system. It comes in 2 of rows. The high-quality gold is used as contact plating material. Moreover, the product is 2.54mm. The product contains 26 contacts. The product is made from sturdy copper alloy materials. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features 200.0µin (5.08µm) of post thickness. The product carries possible position value of 26. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.390" (9.91mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polycyclohexylenedimethylene terephthalate (pct), glass filled insulation material. It is shipped in tape & reel (tr) package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.243" (6.17mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 23 weeks standard lead time. Additionally, the product's output is 1.75a. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot, pick and place. It has typical contact type of male pin. Moreover, it corresponds to n2526, a base product number of the product. The product is designated with the ear99 code number.
