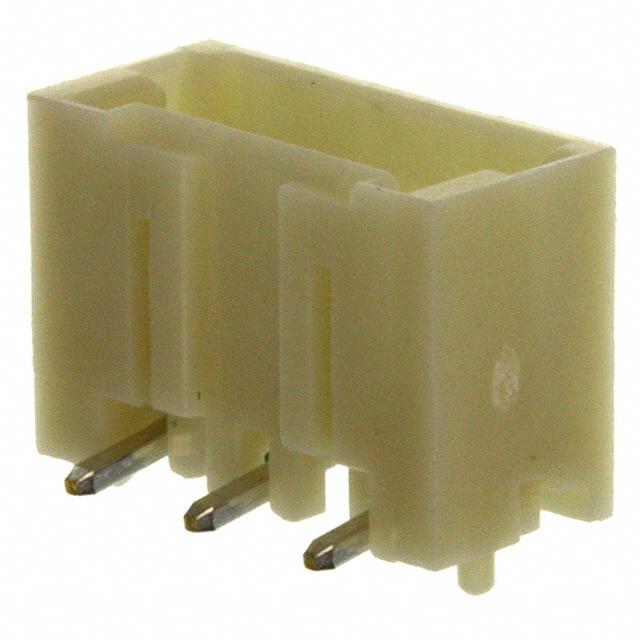

TE Connectivity AMP Connectors 292232-5
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-30°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
5
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.272" (6.91mm)
Voltage Rating:
50VAC
edacadModel:
292232-5 Models
Applications:
General Purpose
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1863248
Insulation Color:
Beige
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon, Glass Filled
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.094" (2.40mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
-
Pitch - Mating:
0.059" (1.50mm)
Ingress Protection:
-
Features:
Board Guide, Pick and Place
Mounting Type:
Surface Mount
Series:
Mini CT
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
292232
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 292232-5 on website for other similar products.
We accept all major payment methods for all products including ET11184598. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 292232-5 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 292232-5. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 292232-5.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11184598 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11184598.
Yes. We ship 292232-5 Internationally to many countries around the world.
This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 292232-5. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -30°c ~ 105°c operating temperature range. The product carries possible position value of 5. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.272" (6.91mm) of insulation height. Moreover, the product has a nominal 50vac voltage rating. The product is widely employed in general purpose. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, beige is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa), nylon, glass filled insulation material. It is shipped in tape & reel (tr) package . header Connector type offer robust functionality. It is 0.094" (2.40mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is varies by wire gauge. It has 0.059" (1.50mm) of pitch-mating value. The splendid features of the product include board guide, pick and place. The product is available in surface mount configuration. The product mini ct, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 292232, a base product number of the product. The product is designated with the ear99 code number.
