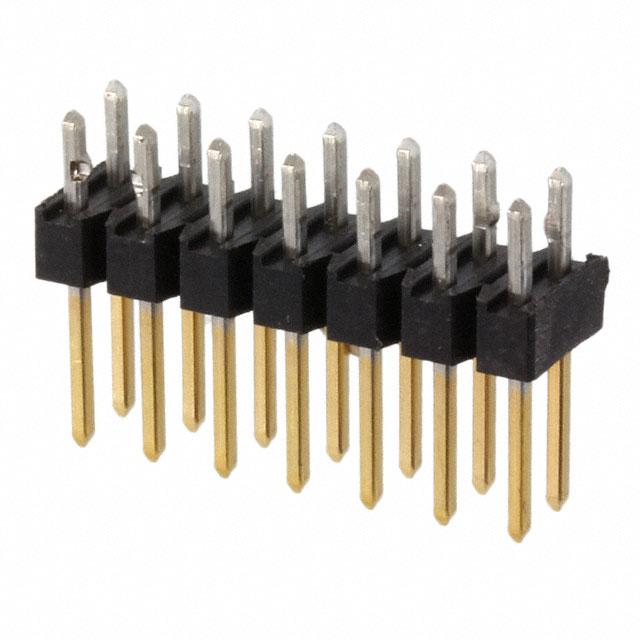

TE Connectivity AMP Connectors 104350-7
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-65°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
14
Contact Finish - Post:
Tin-Lead
Shrouding:
Unshrouded
Overall Contact Length:
0.440" (11.18mm)
Insulation Height:
0.090" (2.29mm)
Voltage Rating:
30VAC
REACH Status:
REACH Affected
edacadModel:
104350-7 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/668725
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Thermoplastic
Package:
Bulk
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.230" (5.84mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Press-Fit, Solder
Current Rating (Amps):
3A
Contact Length - Post:
0.120" (3.05mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
AMPMODU Mod II
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
104350
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 104350-7 on website for other similar products.
We accept all major payment methods for all products including ET11168598. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 104350-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 104350-7. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 104350-7.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11168598 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11168598.
Yes. We ship 104350-7 Internationally to many countries around the world.
This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 104350-7. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -65°c ~ 105°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 14. It has possible tin-lead contact post finishing. Furthermore, a bespoke product features unshrouded. The product has a 0.440" (11.18mm) of overall contact lentgh. 0.090" (2.29mm) of insulation height. Moreover, the product has a nominal 30vac voltage rating. In addition, it is reach affected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust thermoplastic insulation material. It is shipped in bulk package . It carries 0.100" (2.54mm) of row spacing. header, breakaway Connector type offer robust functionality. It is 0.230" (5.84mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features press-fit, solder termination style. Additionally, the product's output is 3a. 0.120" (3.05mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product ampmodu mod ii, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 104350, a base product number of the product. The product is designated with the ear99 code number.
