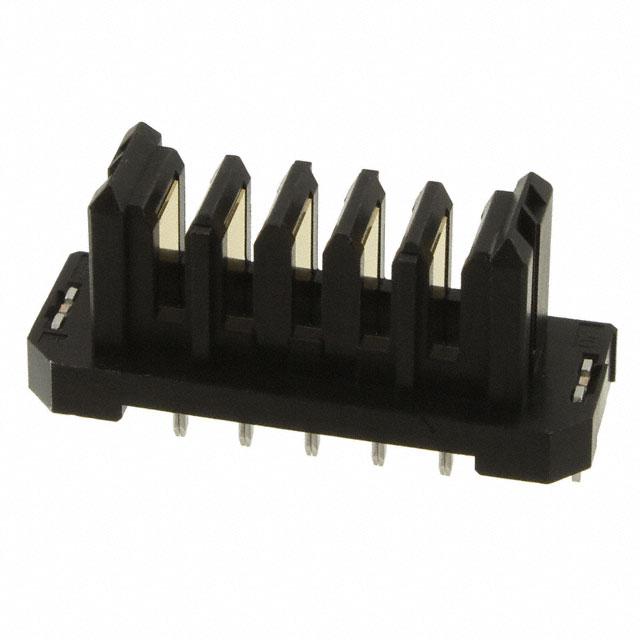

Hirose Electric Co Ltd FX30B-5P-3.81DSA20
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
39.4µin (1.00µm)
Number of Positions:
5
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 2 Wall
Overall Contact Length:
-
Insulation Height:
0.559" (14.20mm)
Voltage Rating:
250V
REACH Status:
REACH Unaffected
edacadModel:
FX30B-5P-3.81DSA20 Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4755304
Insulation Color:
Black
Contact Shape:
Rectangular
Mated Stacking Heights:
20mm
Insulation Material:
Polyamide (PA), Nylon
Package:
Tray
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
3.90µin (0.099µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
13A
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.150" (3.81mm)
Ingress Protection:
-
Features:
Board Guide, Board Lock
Mounting Type:
Through Hole
Series:
FunctionMax™ FX30B
Contact Type:
Male Blade
Contact Material:
Copper Alloy
Base Product Number:
FX30B
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search FX30B-5P-3.81DSA20 on website for other similar products.
We accept all major payment methods for all products including ET11162639. Please check your shopping cart at the time of order.
You can order Hirose Electric Co Ltd brand products with FX30B-5P-3.81DSA20 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Hirose Electric Co Ltd FX30B-5P-3.81DSA20. You can also check on our website or by contacting our customer support team for further order details on Hirose Electric Co Ltd FX30B-5P-3.81DSA20.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11162639 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Hirose Electric Co Ltd" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11162639.
Yes. We ship FX30B-5P-3.81DSA20 Internationally to many countries around the world.
This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is FX30B-5P-3.81DSA20. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features 39.4µin (1.00µm) of post thickness. The product carries possible position value of 5. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 2 wall. 0.559" (14.20mm) of insulation height. Moreover, the product has a nominal 250v voltage rating. In addition, it is reach unaffected. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical rectangular shape. The mated stacking heights of a bespoke product includes 20mm. It has a robust polyamide (pa), nylon insulation material. It is shipped in tray package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 3.90µin (0.099µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 13a. 0.130" (3.30mm) is the given possible contact length (post) values. It has 0.150" (3.81mm) of pitch-mating value. The splendid features of the product include board guide, board lock. The product is available in through hole configuration. The product functionmax™ fx30b, is a highly preferred choice for users. It has typical contact type of male blade. The product is made from sturdy copper alloy materials. Moreover, it corresponds to fx30b, a base product number of the product. The product is designated with the ear99 code number.
