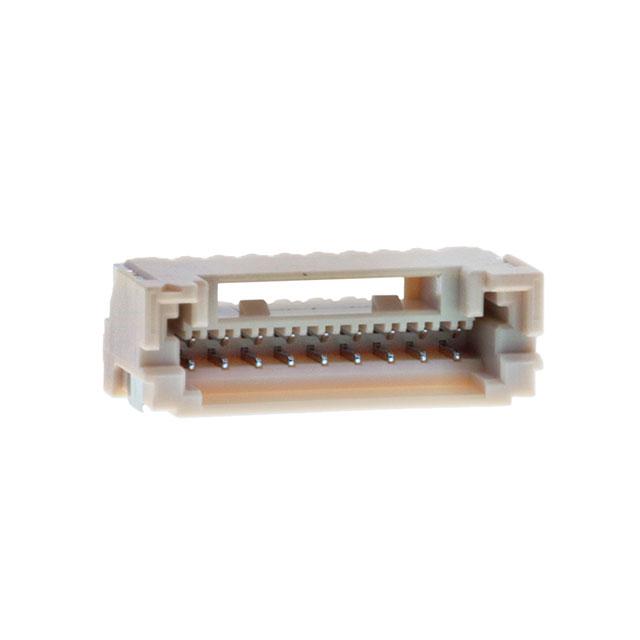

JST Sales America Inc. SM09B-ZESS-TB(LF)(SN)

SM09B-ZESS-TB-LF--SN- JST Sales America Inc. SM09B-ZESS-TB(LF)(SN)
SM09B-ZESS-TB(LF)(SN)
JST Sales America Inc.

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
9
Overall Contact Length:
-
title:
SM09B-ZESS-TB(LF)(SN)
Insulation Height:
0.228" (5.80mm)
Insulation Color:
Natural
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Voltage Rating:
100V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
2A
Contact Length - Post:
-
Pitch - Mating:
0.059" (1.50mm)
Ingress Protection:
-
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
ZE
Packaging:
Tape & Reel (TR)
Insulation Material:
Polyamide (PA), Nylon
Contact Type:
Outer Shroud Contact
Contact Material:
Copper Alloy
Base Product Number:
SM09B-ZE
ECCN:
EAR99
Checking for live stock

This is manufactured by JST Sales America Inc.. The manufacturer part number is SM09B-ZESS-TB(LF)(SN). It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 85°c operating temperature range. The product carries possible position value of 9. 0.228" (5.80mm) of insulation height. In addition, natural is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical rectangular shape. Moreover, the product has a nominal 100v voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 2a. It has 0.059" (1.50mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product ze, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. It has typical contact type of outer shroud contact. The product is made from sturdy copper alloy materials. Moreover, it corresponds to sm09b-ze, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
ZE Connector Datasheet(Datasheets)
pdf icon
BM04B-ACHSS-A-GAN-TF(Datasheets)
pdf icon
SM(7-12)B-ZExx-TB(LF)(SN) ) Pkg Drawing(Product Drawings)
