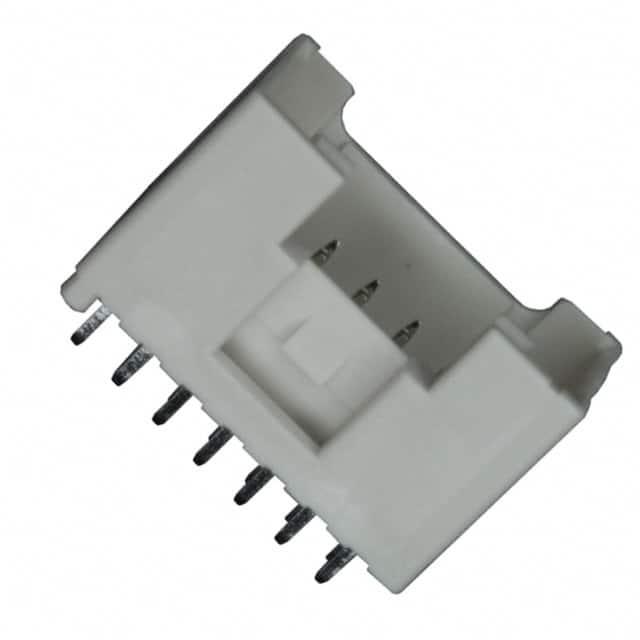

JST Sales America Inc. B14B-PUDSS-1(LF)(SN)

B14B-PUDSS-1-LF--SN- JST Sales America Inc. B14B-PUDSS-1(LF)(SN)
B14B-PUDSS-1(LF)(SN)
JST Sales America Inc.

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-25°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
14
Overall Contact Length:
-
Insulation Height:
0.378" (9.60mm)
Voltage Rating:
250V
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
11mm
Insulation Material:
Polyamide (PA66), Nylon 6/6, Glass Filled
Package:
Tray
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.122" (3.10mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
PUD
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
B14B-PUD
ECCN:
EAR99
Checking for live stock

This is manufactured by JST Sales America Inc.. The manufacturer part number is B14B-PUDSS-1(LF)(SN). It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -25°c ~ 85°c operating temperature range. The product carries possible position value of 14. 0.378" (9.60mm) of insulation height. Moreover, the product has a nominal 250v voltage rating. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 11mm. It has a robust polyamide (pa66), nylon 6/6, glass filled insulation material. It is shipped in tray package . It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 3a. 0.122" (3.10mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product pud, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to b14b-pud, a base product number of the product. The product is designated with the ear99 code number.
