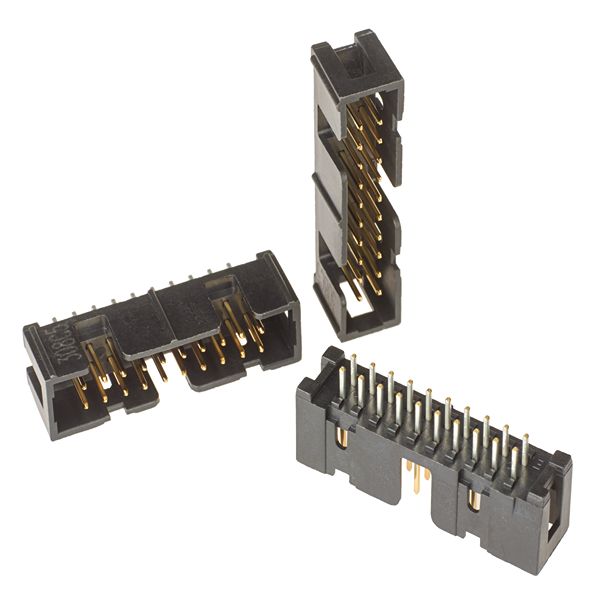

3M N2520-6002-RB

N2520-6002-RB 3M
3M

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 105°C
Number of Positions:
20
Contact Finish - Post:
Tin
edacadModel:
N2520-6002-RB Models
Overall Contact Length:
-
Insulation Height:
0.390" (9.91mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/755179
Contact Shape:
Square
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.243" (6.17mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
8 Weeks
Current Rating (Amps):
1.75A
Contact Length - Post:
0.112" (2.84mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
2500
Packaging:
Tray
Insulation Material:
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Material:
Copper Alloy
Base Product Number:
N2520
ECCN:
EAR99
Checking for live stock

This is manufactured by 3M. The manufacturer part number is N2520-6002-RB. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 20. It has possible tin contact post finishing. 0.390" (9.91mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.243" (6.17mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 8 weeks standard lead time. Additionally, the product's output is 1.75a. 0.112" (2.84mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole configuration. The product 2500, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polycyclohexylenedimethylene terephthalate (pct), polyester, glass filled insulation material. The product is made from sturdy copper alloy materials. Moreover, it corresponds to n2520, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Interconnect Catalog(Datasheets)
pdf icon
Mult Devs - SKU # chg 14/DEC/2020(PCN Part Number)
pdf icon
2500 Series Drawing(Product Drawings)
