Cherry NPN Hall Effect Sensor switching current 25 mA supply voltage 4.5 → 24 V dc

Enrgtech Part No: ET16945814
|
Manufacturer Part No:
GS100701
|
Manufacturer: ZF

GS100701 Cherry NPN Hall Effect Sensor switching current 25 mA supply voltage 4.5 → 24 V dc

Product Information

Housing Material:

Aluminium

Minimum Operating Temperature:

-40°C

IP Rating:

IP68

Switching Current:

25 mA

Output Type:

NPN

Mounting Style:

Panel Mount

Length:

1in

Reverse Polarity Protection:

Yes

Supply Voltage:

4.5 → 24 V dc

Body Style:

Barrel

Maximum DC Voltage:

24V

Maximum Operating Temperature:

+125°C

Checking for live stock

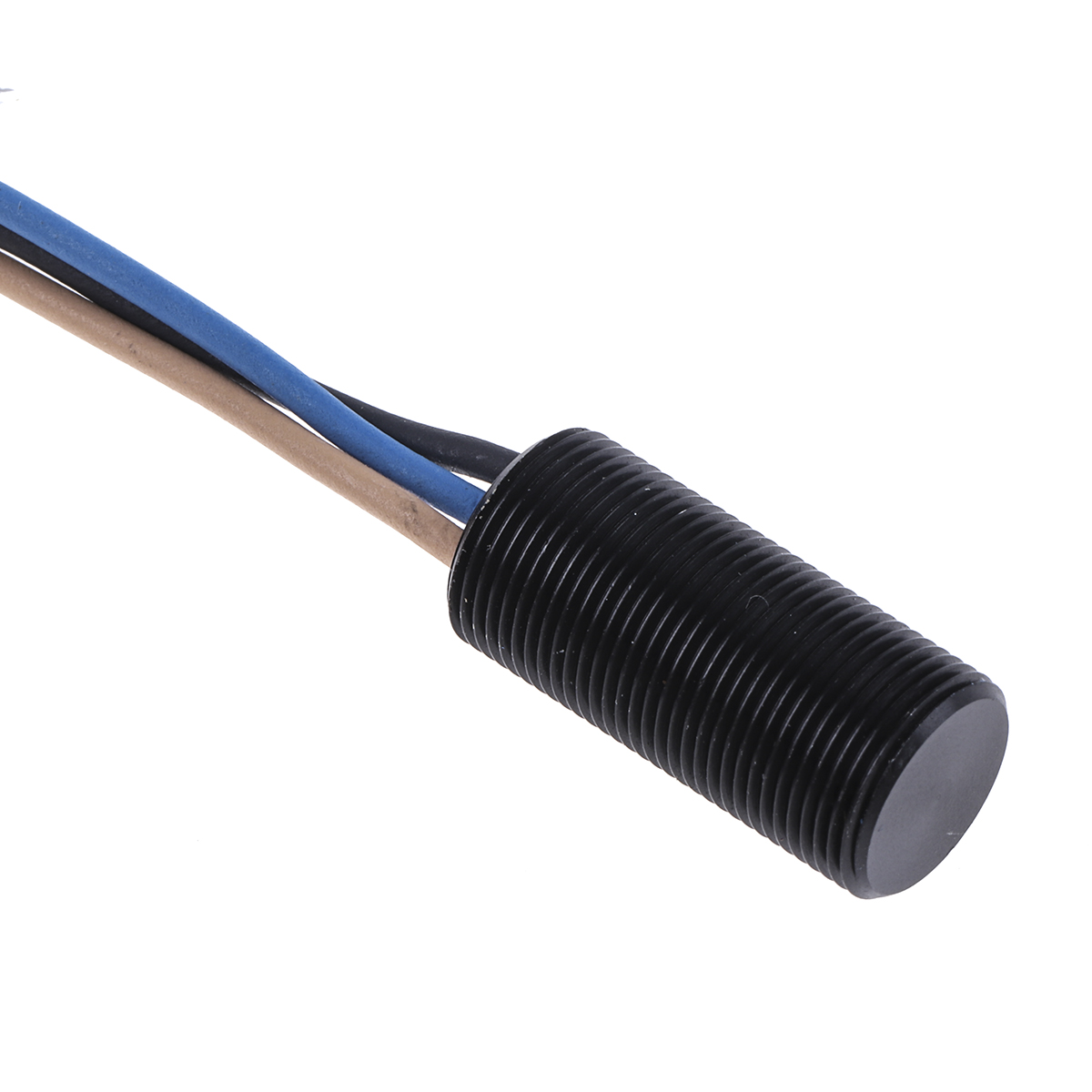

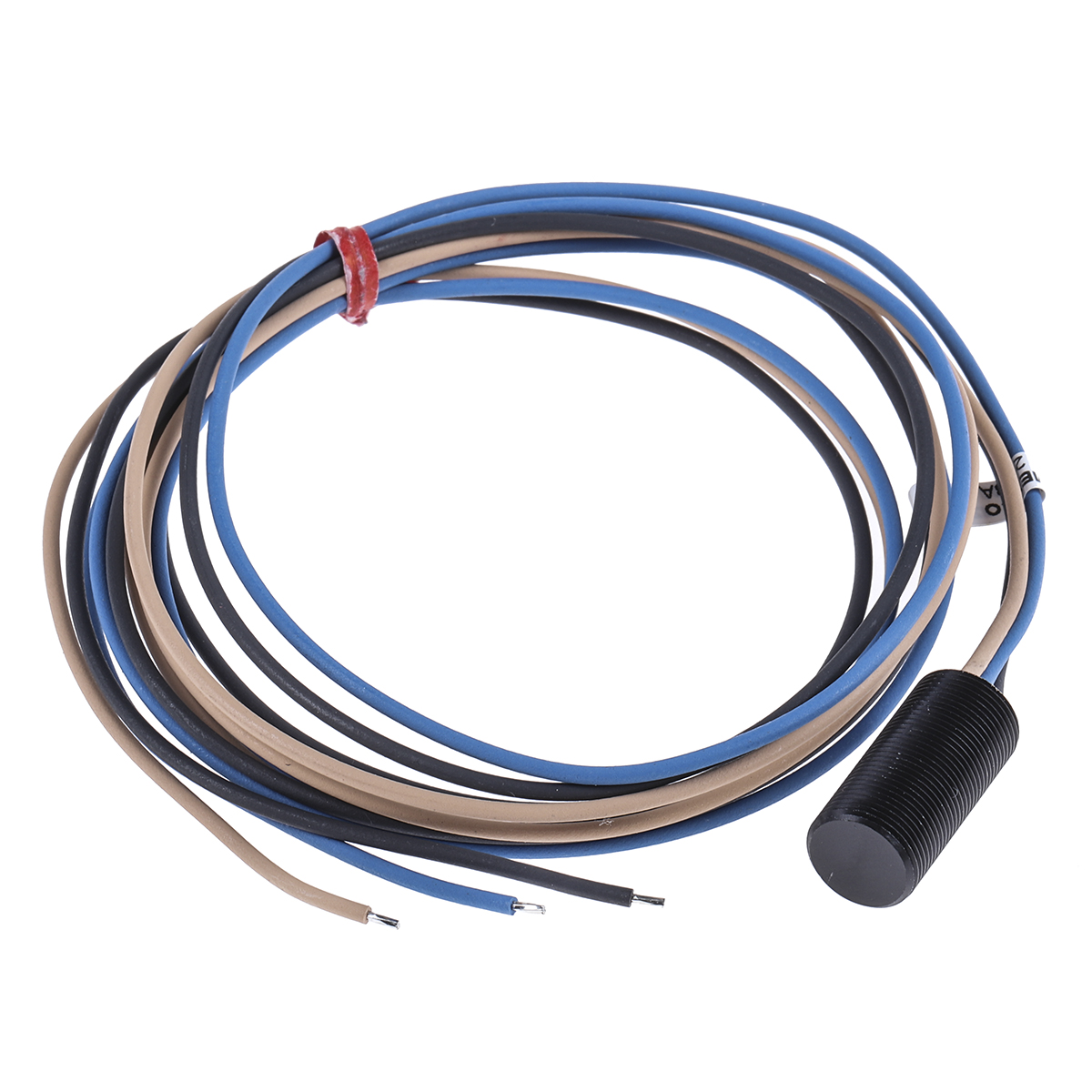

The ZF GS100701 is a compact, panel‑mount Hall‑effect gear‑tooth speed sensor designed for ferrous‑edge detection and near‑zero speed applications in industrial automation and motion control systems. Supporting a wide supply‑voltage range from 4.5 V to 24 V dc and a switching (sink) current rating up to 25 mA, this NPN (sinking) output sensor delivers reliable performance across demanding environments. Its anodised aluminium housing offers mechanical robustness and the IP67 (or above) rating protects against harsh industrial conditions.

Special Features and Benefits of Buying the ZF Cherry NPN Hall Effect Sensor

Wide supply‑voltage range (4.5 → 24 V dc) enables flexible system integration.
NPN sink‑type output supports standard industrial input modules and PLCs.
25 mA maximum switching current accommodates moderate sensor loads.
Anodised aluminium barrel housing ensures durability and corrosion resistance.
High-temperature-rated (-40 °C to +125 °C) supports extreme‑condition usage.
Compatible with gear‑tooth, ferrous‑edge and speed‑detection targets; suitable for speed sensing up to ~15 kHz.

Engineered for Industrial Motion‑Control Applications

The GS100701 sensor is engineered to maintain precise switching reliability in dynamic systems such as gear trains, motor shafts and rotating mechanical assemblies. The Hall‑effect detection mechanism delivers consistent trigger thresholds even at low speeds or standstill, aiding diagnostics and preventative maintenance applications. With robust protection and a broad supply‑voltage tolerance, it fits into embedded automation frameworks where spatial constraints, environmental robustness and signal integrity matter.

Application Flexibility of the Sensor

Speed sensing on gearboxes and drive trains in industrial automation systems.
Ferrous‑tooth or edge‑detection for motor‑control feedback in CNC or robotic equipment.
Condition monitoring of rotating shafts, conveyors and material‑handling systems.
Integration into PLC or motion‑controller input modules.
Harsh‑environment installations (- ‑40 °C to +125 °C) in automotive, mining or heavy‑industry applications.
