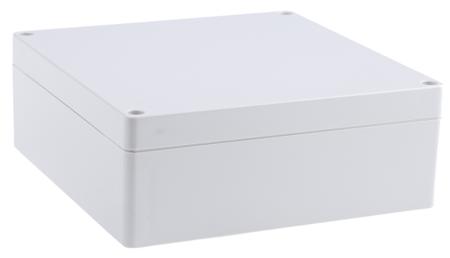

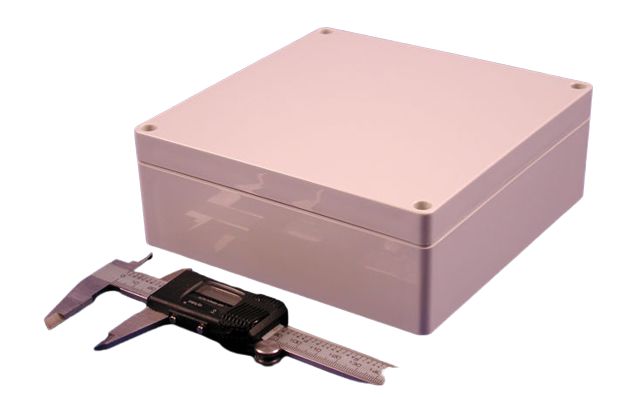

Hammond 1554 Watertight Plastic Enclosure The Hammond 1554 series is a watertight enclosure moulded in grey ABS plastic with a flammability rating of UL94 HB. The two piece tongue & groove construction provides IP66 protection against oil, dust and water. The enclosure interior has DIN rail mounting tabs and vertical P.C. card guides (for 1.5 mm thick P.C. boards). Ideally suited for mounting printed circuit boards or DIN rail mounted components General purpose ABS plastic (material carries a flammability rating of UL94 HB) Light grey (RAL 7035) Two piece tongue & groove construction provides protection against access of oil, dust and water Separate pre-formed (and replaceable) silicone rubber gasket Designed to meet IP66 & NEMA 4, 4X, 12 & 13 ratings Lid is secured with self-captive M4 stainless steel machine screws (included), threaded into integral stainless steel bushings All stainless steel hardware to avoid corrosion caused by dissimilar metals Lid screws are self-captive (lid holes are threaded with the first installation of lid screws) Moulded internal DIN rail mounting tabs (except 1554CGY & 1554DGY) Threaded M3 integral brass inserts and/or standoffs (depending on size) for P.C. board or inner panel mounting in all but the smallest size (1554BGY) Vertical P.C. card guides (for 1.5 mm boards) are moulded in all but the smallest size enclosure (1554BGY) Note Not recommended for outdoor use.
For more information please check the datasheets.
