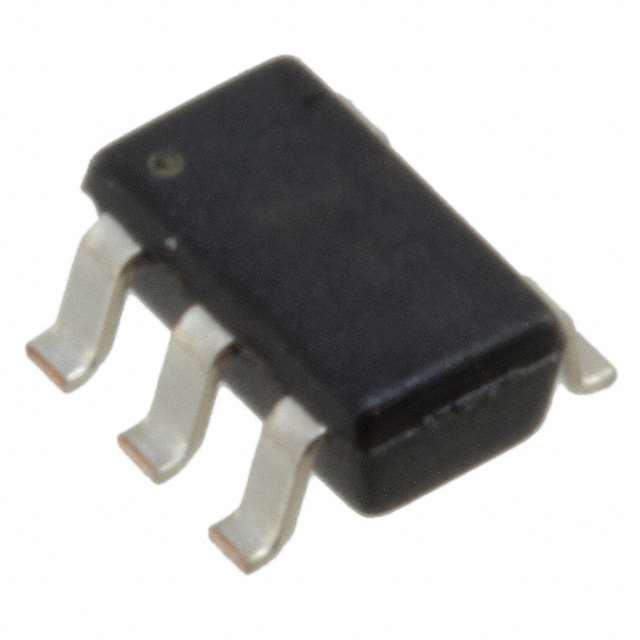

Texas Instruments SN74LV1T86DBVR

SN74LV1T86DBVR Texas Instruments
SN74LV1T86DBVR
Texas Instruments

Product Information

Number of Inputs:
2
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Quiescent (Max):
10 µA
Operating Temperature:
-40°C ~ 125°C (TA)
Package / Case:
SC-74A, SOT-753
Input Logic Level - High:
0.94V ~ 2.1V
REACH Status:
REACH Unaffected
edacadModel:
SN74LV1T86DBVR Models
Max Propagation Delay @ V, Max CL:
7ns @ 5V, 30pF
edacadModelUrl:
/en/models/4515212
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Input Logic Level - Low:
0.58V ~ 0.8V
standardLeadTime:
6 Weeks
Number of Circuits:
1
Features:
-
Mounting Type:
Surface Mount
Series:
74LV
Logic Type:
XOR (Exclusive OR)
Supplier Device Package:
SOT-23-5
Voltage - Supply:
1.6V ~ 5.5V
Current - Output High, Low:
8mA, 8mA
Base Product Number:
74LV1T86
ECCN:
EAR99
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is SN74LV1T86DBVR. The product consists of 2 inputs. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. It has a maximum quiescent current of 10 µa. The product has -40°c ~ 125°c (ta) operating temperature range. Moreover, the product comes in sc-74a, sot-753. Features input logic level - high of 0.94v ~ 2.1v. In addition, it is reach unaffected. The maximum propagation delay at given voltage includes 7ns @ 5v, 30pf. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). Product with 0.58v ~ 0.8v input logic level - low. It has a long 6 weeks standard lead time. It integrates 1 circuits. The product is available in surface mount configuration. The product 74lv, is a highly preferred choice for users. The product is a xor (exclusive or) logic type. sot-23-5 is the supplier device package value. It has optimum voltage supply of 1.6v ~ 5.5v. The high and low output current of the product is 8ma, 8ma. Moreover, it corresponds to 74lv1t86, a base product number of the product. The product is designated with the ear99 code number.
