Maximum Frequency Range Square Pulse and Arbitrary Waveform:
3MHz
Dimensions:
251 x 291 x 91mm
Width:
291mm
Variable Sweep:
Yes
CMOS Output Level:
4 → 14.5V Pk-Pk
Attenuation:
-20dB
Maximum Frequency Range Sinewave:
3MHz
Minimum Frequency Range Sinewave:
0.3Hz

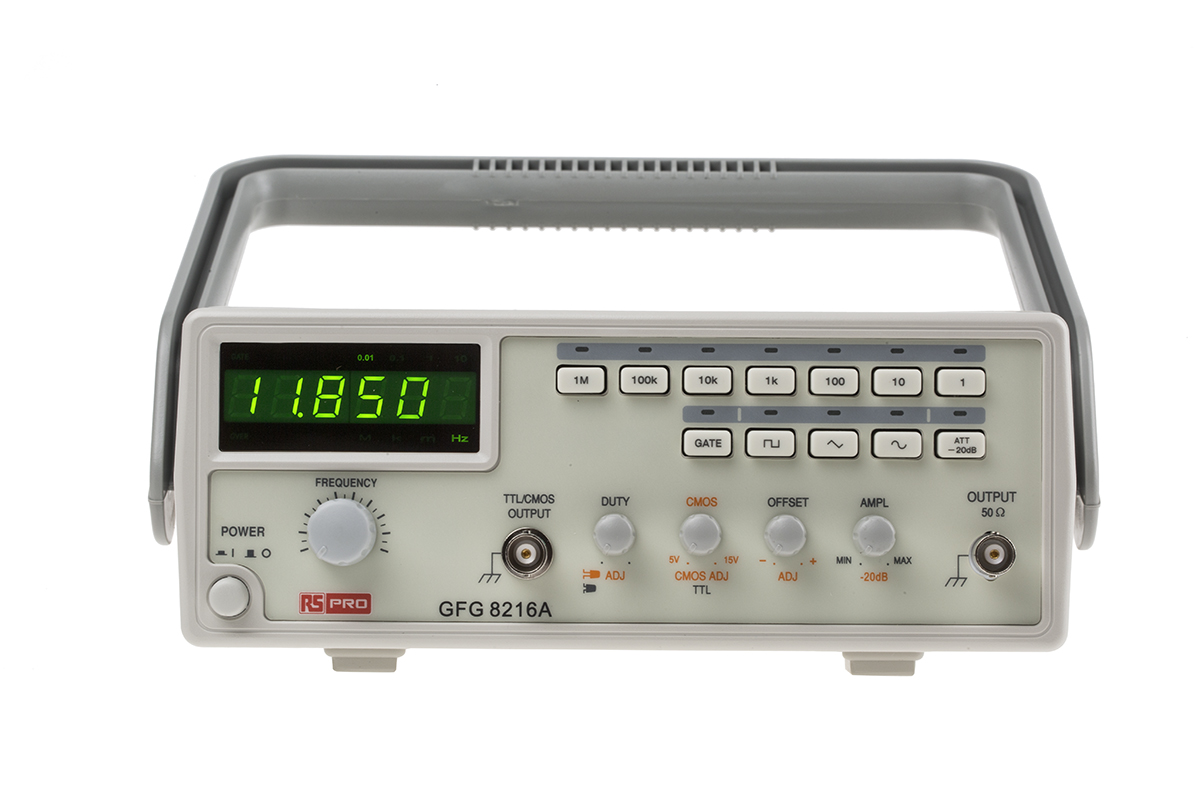

Model Number:
IFG8216A
Maximum Frequency Range Triangle/Saw:
3MHz
Internal and External Amplitude Modulation:
Yes
Maximum Operating Temperature:
+40°C
Minimum Frequency Range Triangle/Saw:
0.3Hz
Output Amplitude:
>10V Pk-Pk
Minimum Operating Temperature:
0°C
Length:
251mm
Calibrated:
RSCAL
Time Base Accuracy:
±10ppm
Minimum Frequency Range Square Pulse and Arbitrary Waveform:
0.3 Hz
Input Impedance:
1 (Frequency Counter) MΩ, 1 (VCF) kΩ
Weight:
2.1kg
TTL Output Level:
3V Pk-Pk
Plug Type:
UK
Frequency Range Square Pulse and Arbitrary Waveform:
0.3 Hz → 3 MHz
Height:
91mm
Internal Linear and Log Sweep:
Yes
Digital Frequency:
Yes
Digital Amplitude and Offset:
Yes
