Maximum Frequency Range Square Pulse and Arbitrary Waveform:
25MHz
Dimensions:
266 x 293 x 107mm
FM Modulation:
Yes
Width:
293mm
Variable Sweep:
Yes
Maximum Frequency Range Sinewave:
25MHz
Minimum Frequency Range Sinewave:
1µHz

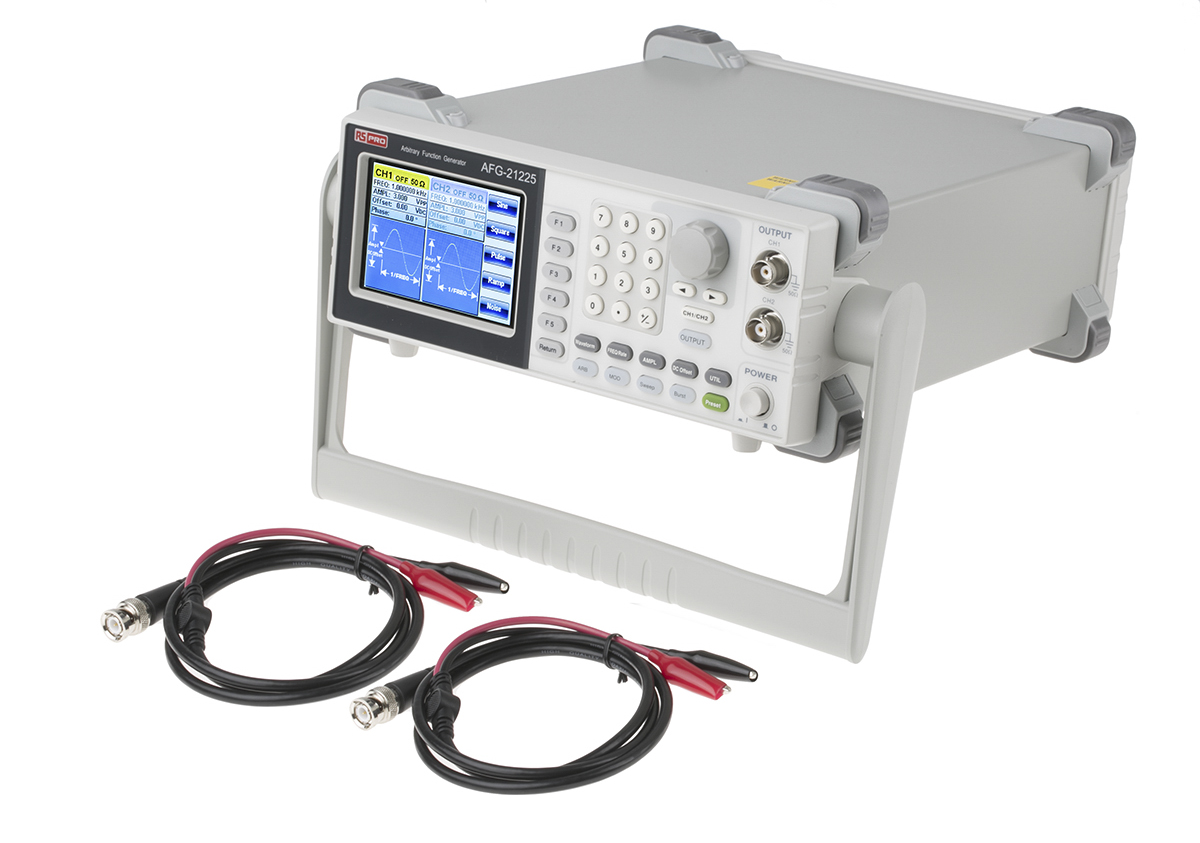

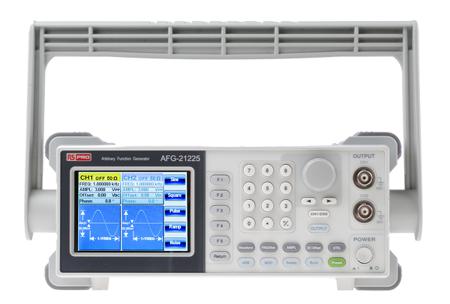

Model Number:
AFG21225
Maximum Frequency Range Triangle/Saw:
1MHz
Internal and External Amplitude Modulation:
Yes
Maximum Operating Temperature:
40°C
Output Amplitude:
1 mV Pk-Pk → 10 V Pk-Pk, 1 mV Pk-Pk → 5 V Pk-Pk, 2 mV Pk-Pk → 10 V Pk-Pk (USB Open Circuit), 2 mV Pk-Pk → 20 V Pk-Pk (Open Circuit)
Minimum Operating Temperature:
0°C
Length:
266mm
Calibrated:
RSCAL
Interface Type:
USB
Time Base Accuracy:
±20ppm
Minimum Frequency Range Square Pulse and Arbitrary Waveform:
1 μHz
Input Impedance:
1 (Frequency Counter) kΩ, 10 (Modulation Input) kΩ, 10 (Trigger Input) kΩ
Digital Frequency:
Yes
Weight:
2.5kg

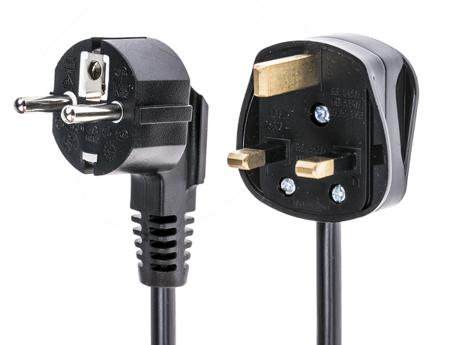

Plug Type:
UK
Frequency Range Square Pulse and Arbitrary Waveform:
1 μHz → 25 MHz
Height:
107mm
Internal Linear and Log Sweep:
Yes
Output Impedance:
50Ω
Digital Amplitude and Offset:
Yes
