Maximum Frequency Range Square Pulse and Arbitrary Waveform:
100 (Square & Pulse) MHz, 80 (Arbitrary)MHz
Dimensions:
250 x 295 x 97mm
FM Modulation:
Yes
Width:
295mm
Variable Sweep:
Yes
Maximum Frequency Range Sinewave:
240MHz
Minimum Frequency Range Sinewave:
1µHz
Model Number:
TGF4242
Maximum Frequency Range Triangle/Saw:
5MHz
Number of Channels:
2
Internal and External Amplitude Modulation:
Yes
Maximum Operating Temperature:
+40°C
Minimum Frequency Range Triangle/Saw:
1µHz
Minimum Operating Temperature:
+5°C
Length:
250mm
Interface Type:
GPIB, LAN, USB
Time Base Accuracy:
<±1 (Initial Settling Error) ppm, <±1(Oscillator Aging Rate) ppm, <1(Temperature Range) ppm
Minimum Frequency Range Square Pulse and Arbitrary Waveform:
1 μHz
Input Impedance:
10 kΩ
Digital Frequency:
Yes
Weight:
3.1kg
Series:
TGF4000
Frequency Range Square Pulse and Arbitrary Waveform:
1 μHz → 100 MHz (Square & Pulse), 80 (Arbitrary) MHz
Height:
97mm
Internal Linear and Log Sweep:
Yes
TTL Output Level:
10V Pk-Pk
Output Impedance:
50Ω
Digital Amplitude and Offset:
Yes

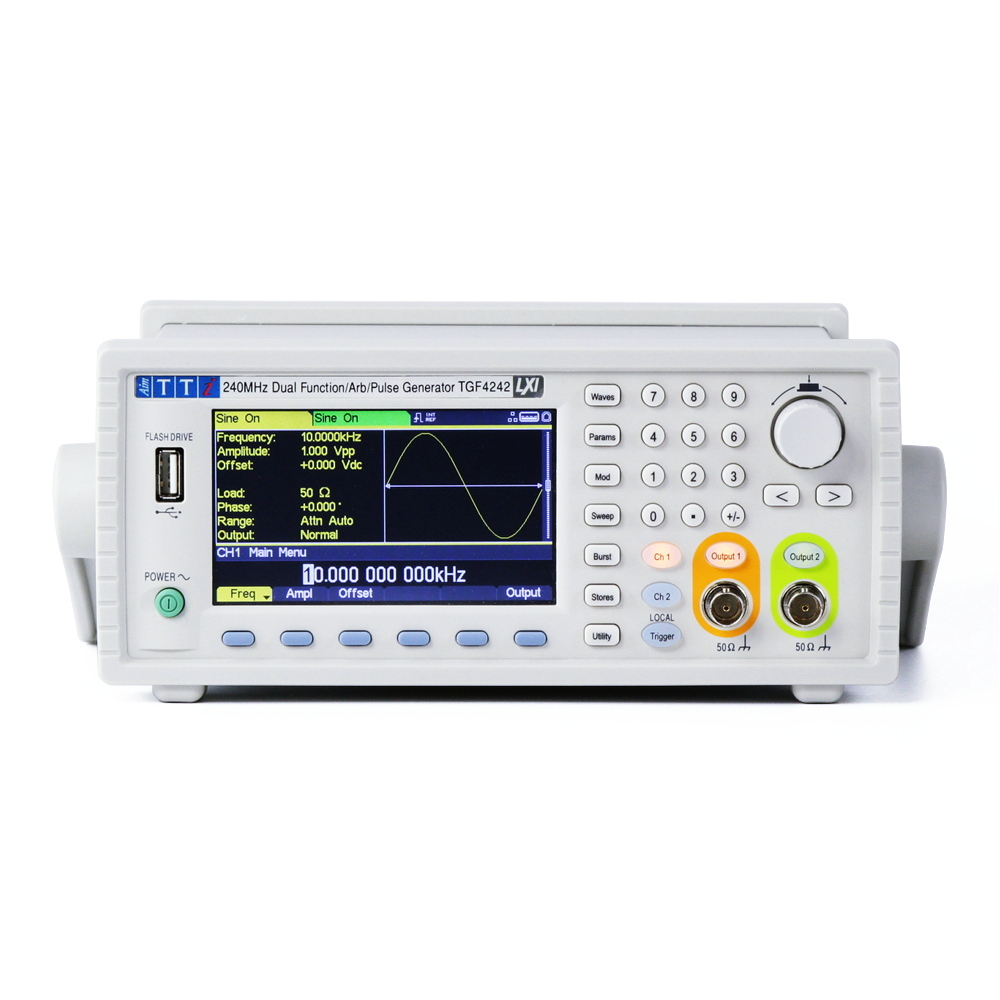

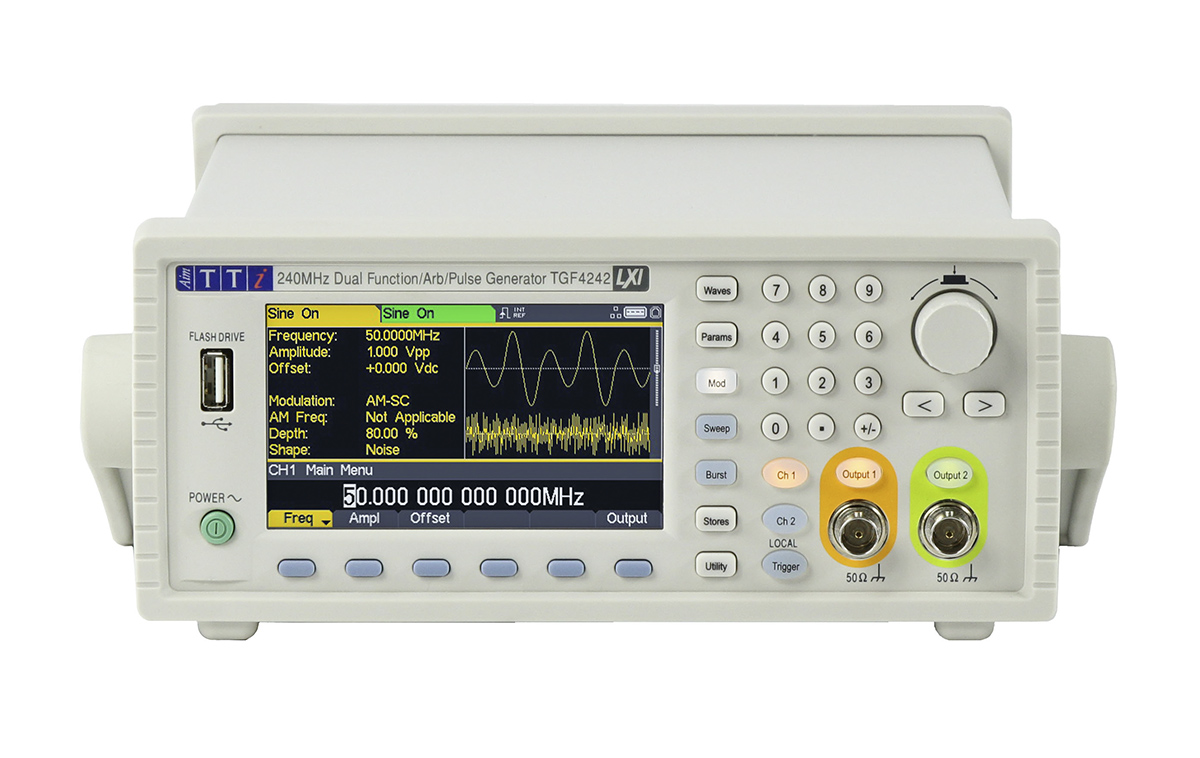

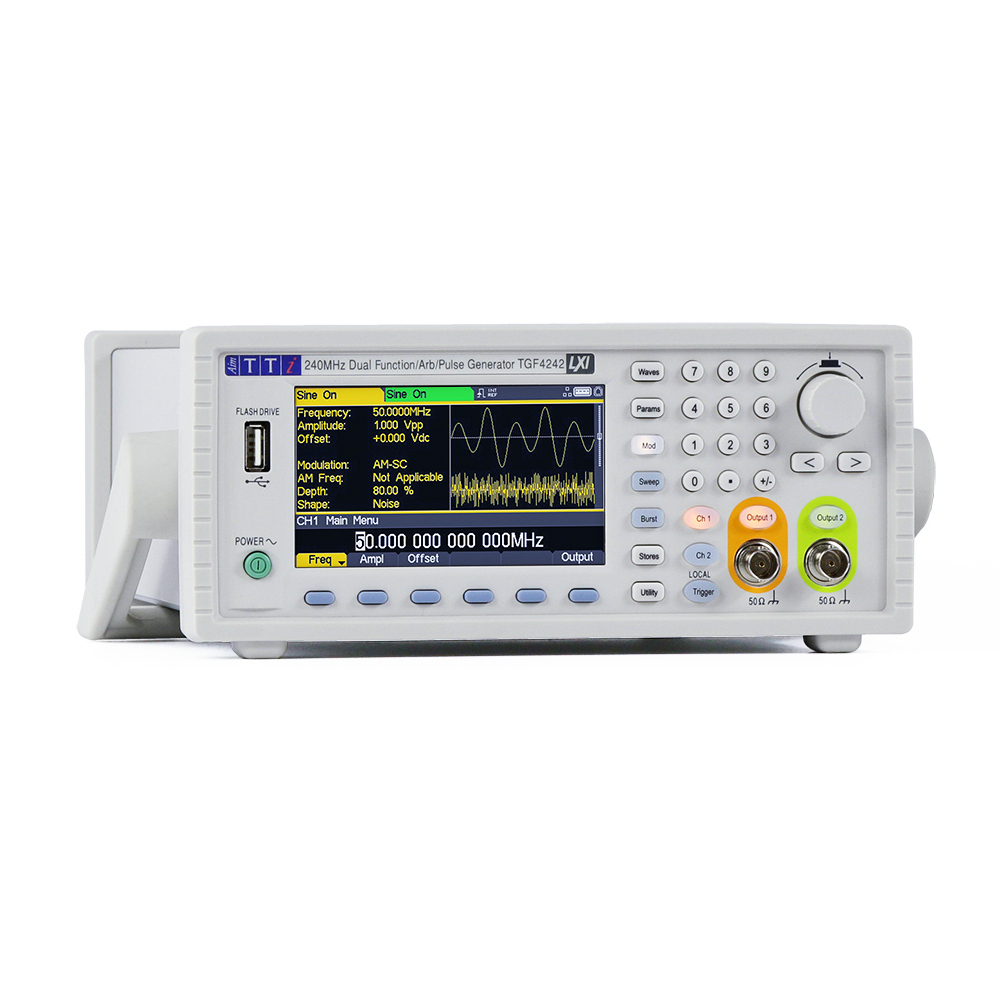

This is FUNCTION ARB GENERATOR HIGH FREQ manufactured by Aim-TTi. The manufacturer part number is TGF4242. It has a maximum 100 (square & pulse) mhz, 80 (arbitrary)mhz frequency range square pulse and arbitrary waveform . The given dimensions of the product include 250 x 295 x 97mm. The product has an FM modulation feature yes . Furthermore, the product is 295mm wide. It includes a variable sweep yes . It has a maximum 240mhz frequency range sinewave . It has a minimum 1µhz frequency range sinewave . It has a model number tgf4242. It has a maximum 5mhz frequency range triangle/saw . It is supplied with 2 channels. It has an internal and external amplitude modulation nature yes . It has a maximum operating temperature of +40°c. In addition, it has a minimum 1µhz frequency range triangle/saw . Whereas, the minimum operating temperature of the product is +5°c. Its accurate length is 250mm. It is a type of gpib, lan, usb interface. It has about <±1 (initial settling error) ppm, <±1(oscillator aging rate) ppm, <1(temperature range) ppm time base accuracy . Moreover, it has a minimum 1 μhz frequency range square pulse and arbitrary waveform . Furthermore, its input impedance equals 10 kω. It has a digital frequency trait yes . The typical product's weight is 3.1kg. The product tgf4000, is a highly preferred choice for users. Additionally, it has a standard 1 μhz → 100 mhz (square & pulse), 80 (arbitrary) mhz frequency range square pulse and arbitrary waveform . In addition, the height is 97mm. Additionally, it has an internal linear and log sweep feature yes . The TTL output level is 10v pk-pk . Its output impedance is 50ω . Moreover, it has a digital amplitude and offset feature yes .
