Port Connection:
NPT 1/2
Minimum Ambient Operating Temperature:
-5°C
Maximum Operating Pressure:
1 MPa
Drain Type:
Automatic
Pressure Gauge Port Thread Size:
1/4 in
Maximum Ambient Operating Temperature:
+60°C
Pressure Gauge Port:
NPT 1/4
Port Connection Thread Size:
1/2 in
Minimum Operating Pressure:
0.05MPa
Maximum Process Operating Temperature:
+60°C
Manufacturer Series:
AW
Port Connection Thread Standard:
NPT
Minimum Process Operating Temperature:
-5°C
Filtration Size:
5µm
Ambient Operating Temperature Range:
-5 → +60°C
Process Operating Temperature Range:
-5 → +60°C
Pressure Gauge Port Thread Standard:
NPT

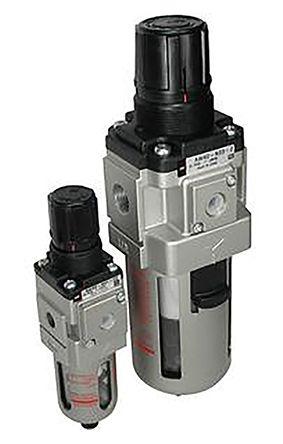

This is AW 5μm NPT 1/2 FR Assembly NPT 1/4 1 MPa 1/4 in 1/2 in manufactured by SMC. The manufacturer part number is AW40-N04D-Z-A. Provides npt 1/2 of port connection. It has a minimum -5°c ambient operating temperature . It features 1 mpa maximum operating pressure. This is basically a automatic drain. Additionally, it has a pressure gauge port of 1/4 in thread size . Additionally, it has a maximum +60°c ambient operating temperature . It has a/an npt 1/4 gauge pressure port . It has a standard 1/2 in port connection thread size . It has a minimum 0.05mpa operating pressure . It has a maximum +60°c process operating temperature . The product has a aw manufacturer series. In addition, it has a port connection of npt thread standard . The product has a minimum -5°c process operating temperature . Moreover, its filtration is about 5µm in size . It has -5 → +60°c ambient operating temperature range . It has a standard -5 → +60°c process operating temperature range . Additionally, the product has a pressure gauge port of npt thread standard .
