Port Connection:
G 1/4
Maximum Operating Pressure:
10 bar
Bowl Material:
Polycarbonate
Drain Type:
Automatic
Proof Pressure:
1.5MPa
Maximum Ambient Operating Temperature:
+60°C
Minimum Ambient Operating Temperature:
-5°C
Port Connection Thread Size:
1/4 in
Minimum Operating Pressure:
0.1MPa
Pressure Gauge Port Thread Size:
1/8 in
Maximum Process Operating Temperature:
+60°C
Manufacturer Series:
AW
Port Connection Thread Standard:
G
Minimum Process Operating Temperature:
-5°C
Filtration Size:
5µm
Ambient Operating Temperature Range:
-5 → +60°C
Process Operating Temperature Range:
-5 → +60°C
Pressure Gauge Port Thread Standard:
G, NPT, Rc

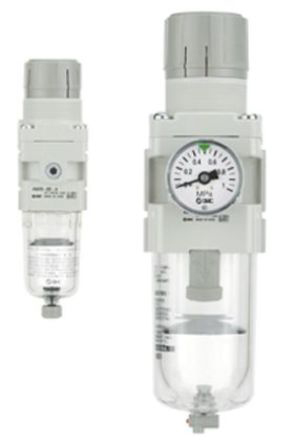

This is AW 5μm G 1/4 Filter Regulator 1 MPa 1/8 in 1/4 in manufactured by SMC. The manufacturer part number is AW30-F02D-B. Provides g 1/4 of port connection. It features 10 bar maximum operating pressure. It has a bowl made of polycarbonate material . This is basically a automatic drain. It has 1.5mpa proof pressure . Additionally, it has a maximum +60°c ambient operating temperature . It has a minimum -5°c ambient operating temperature . It has a standard 1/4 in port connection thread size . It has a minimum 0.1mpa operating pressure . Additionally, it has a pressure gauge port of 1/8 in thread size . It has a maximum +60°c process operating temperature . The product has a aw manufacturer series. In addition, it has a port connection of g thread standard . The product has a minimum -5°c process operating temperature . Moreover, its filtration is about 5µm in size . It has -5 → +60°c ambient operating temperature range . It has a standard -5 → +60°c process operating temperature range . Additionally, the product has a pressure gauge port of g, npt, rc thread standard .
