Manufacturer : Wurth Elektronik
Manufacturer Part No : 74279216
Enrgtech Part No : ET10001512
Product Range : PolySwitch RXEF Series

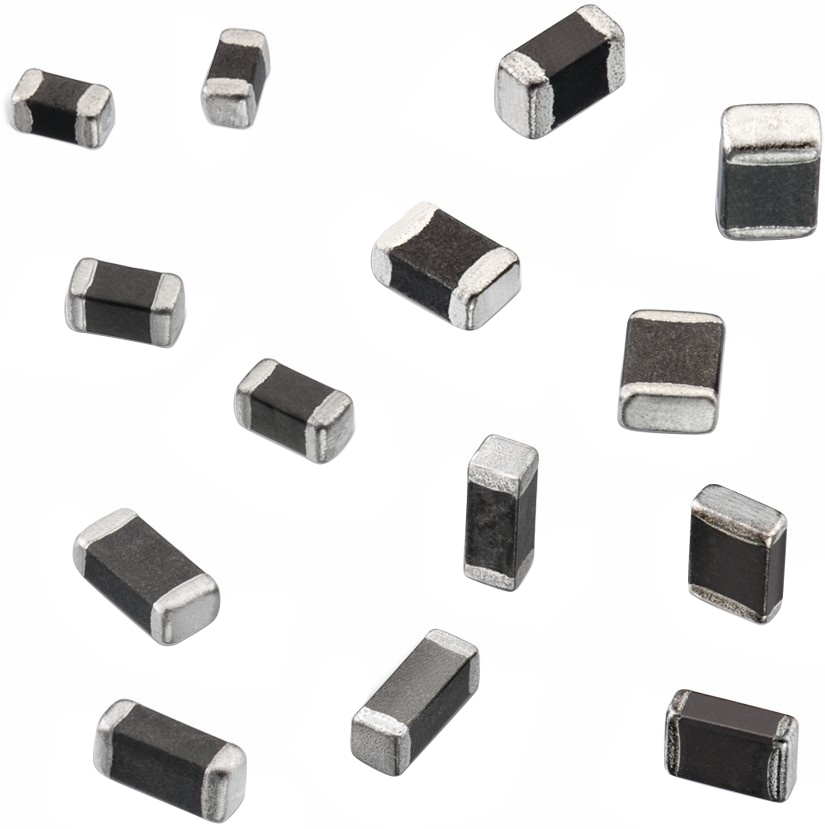

Wurth Elektronik Ferrite Bead (EMI Suppression), 3.2 x 1.6 x 1.1mm (1206 (3216M)), 1200Ω impedance at 100 MHz

High-Speed Multilayer Ferrite SMD - WE-CBF Series Excellent anti-EMI properties and low DC resistance Placed very close next to the interference source even with smallest size 0402, maximum impedance 1000Ω Reliable Ni-Sn electrodes Ideal for data line filtering and voltage de-coupling High rated current up to 6A Recommended for reflow soldering Applications: High Speed: USB 2.0, IEEE 1394, LVDS Wide Band: Control signals, RS232, RS422, DC/DC converter, etc. High Current: Current supply, DC/DC converter etc. Dimensions (mm) Package A B C D 0402 1.0 0.5 0.5 0.25 0603 1.6 0.8 0.8 0.3 0805 2.0 1.2 0.9 0.5 1206 3.2 1.6 1.1 0.5 1210 3.2 2.5 1.3 0.5 1806 4.5 1.6 1.6 0.5 1812 4.5 3.2 1.5 0.5 Reliable Ni-Sn electrodes High rated current up to 6 A Operating temperature: –55 ºC to +125 ºC Perfect as data line filter and for uncoupling of distribution voltage

Product Information

Maximum DC Resistance : 500mΩ
Current Rating : 200mA
Dimensions : 3.2 x 1.6 x 1.1mm
Series : WE-CBF
Material : Ferrite
Length : 3.2mm
Height : 1.1mm
Application : Suppression Components
Depth : 1.6mm
Impedance at 100 MHz : 1200Ω
Package Type : 1206 (3216M)
Type : EMI Suppression
rohs : RoHS Certificate of Compliance
