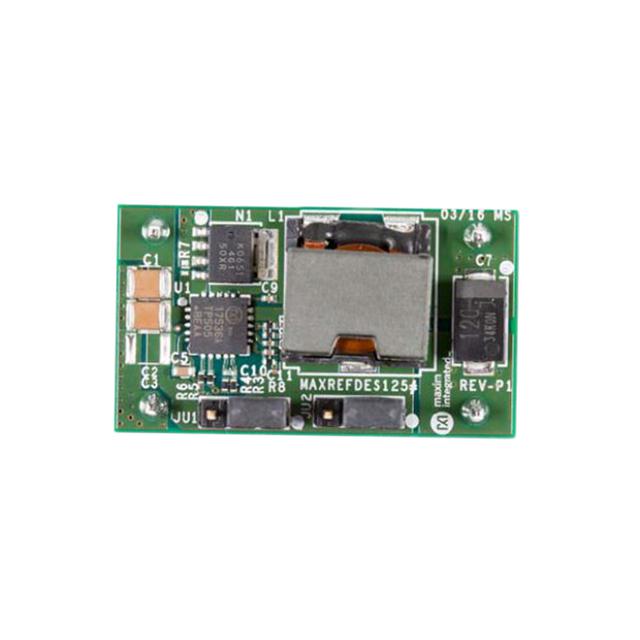

Analog Devices Inc./Maxim Integrated MAXREFDES125#

MAXREFDES125- Analog Devices Inc./Maxim Integrated MAXREFDES125#
Analog Devices Inc./Maxim Integrated

Product Information

Main Purpose:
DC/DC, Step Down
HTSUS:
8473.30.1180
RoHS Status:
Not applicable
Voltage - Input:
17V ~ 36V
Frequency - Switching:
-
REACH Status:
REACH Unaffected
Current - Output:
4A
Board Type:
Fully Populated
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
6 Weeks
Regulator Topology:
Buck
Utilized IC / Part:
MAX17536
Series:
-
Voltage - Output:
5.1V
ECCN:
EAR99
Supplied Contents:
Board(s)
Power - Output:
20 W
Base Product Number:
MAXREFDES125
Outputs and Type:
1, Non-Isolated
Checking for live stock

This is manufactured by Analog Devices Inc./Maxim Integrated. The manufacturer part number is MAXREFDES125#. Basic Purpose: dc/dc, step down. It is assigned with possible HTSUS value of 8473.30.1180. The product is not applicable. The possible product's input voltage is 17v ~ 36v. In addition, it is reach unaffected. While, the output current includes 4a. It is a fully populated type. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 6 weeks standard lead time. The product offers buck regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 5.1v. The product is designated with the ear99 code number. The product is also supplied with contents, such as board(s). The product has an output power 20 w. Moreover, it corresponds to maxrefdes125, a base product number of the product. The output and type include 1, non-isolated.

pdf icon
MAXREFDES125 Layout(Design Resources)
pdf icon
MAX17536(Datasheets)
pdf icon
MAXREFDES125#(Datasheets)
pdf icon
Maxim Integrated RoHS Cert(Environmental Information)
pdf icon
Maxim Integrated REACH(Environmental Information)
