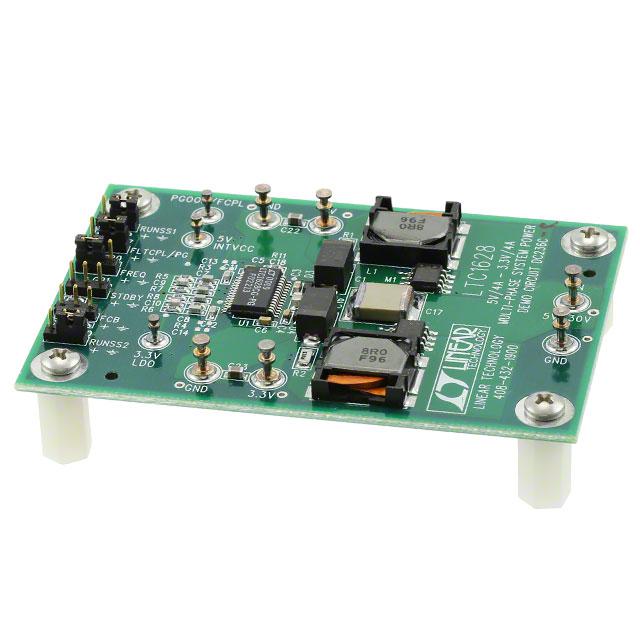

Analog Devices Inc. DC236C-C

Enrgtech Part No: ET20162871
|
Manufacturer Part No:
DC236C-C
|
Manufacturer: Analog Devices Inc.

Product Information

Main Purpose:

DC/DC, Step Down with LDO

HTSUS:

8473.30.1180

RoHS Status:

ROHS3 Compliant

Voltage - Input:

5.2V ~ 30V

Frequency - Switching:

300kHz

REACH Status:

REACH Unaffected

Current - Output:

4A, 4A, 50mA, 25mA

Board Type:

Fully Populated

Package:

Box

Moisture Sensitivity Level (MSL):

1 (Unlimited)

standardLeadTime:

8 Weeks

Regulator Topology:

Buck

Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC236C-C. Basic Purpose: dc/dc, step down with ldo. It is assigned with possible HTSUS value of 8473.30.1180. The product is rohs3 compliant. The possible product's input voltage is 5.2v ~ 30v. The switching frequency of the standard product is 300khz. In addition, it is reach unaffected. While, the output current includes 4a, 4a, 50ma, 25ma. It is a fully populated type. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. The product offers buck regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 3.3v, 3.3v, 5v, 5v. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to dc236c, a base product number of the product. The output and type include 4, non-isolated.

DC236C Schematic(Design Resources)

DC236 Manual(Manuals)

LTC1628(-PG) Datasheet(Datasheets)
