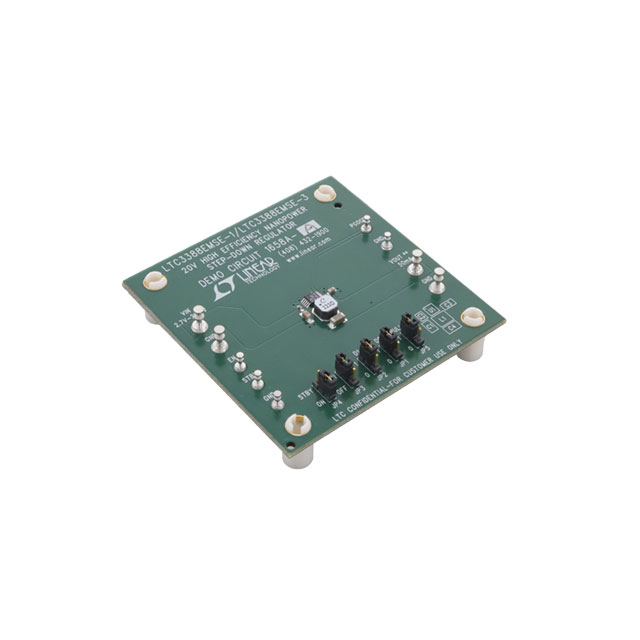

Analog Devices Inc. DC1658A-A

DC1658A-A Analog Devices Inc.
Analog Devices Inc.

Product Information

Main Purpose:
DC/DC, Step Down
HTSUS:
8473.30.1180
RoHS Status:
ROHS3 Compliant
Note:
-
Voltage - Input:
2.7V ~ 20V
Frequency - Switching:
-
title:
DC1658A-A
REACH Status:
REACH Unaffected
Current - Output:
50mA
Manufacturer:
Analog Devices Inc.
Board Type:
Fully Populated
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
10 Weeks
Regulator Topology:
Buck
Utilized IC / Part:
LTC3388-1
Series:
-
Voltage - Output:
1.2V, 1.5V, 1.8V or 2.5V
Packaging:
Box
Supplied Contents:
Board(s)
ECCN:
EAR99
Base Product Number:
DC1658
Outputs and Type:
1, Non-Isolated
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is DC1658A-A. Basic Purpose: dc/dc, step down. It is assigned with possible HTSUS value of 8473.30.1180. The product is rohs3 compliant. The possible product's input voltage is 2.7v ~ 20v. In addition, it is reach unaffected. While, the output current includes 50ma. The analog devices inc.'s product offers user-desired applications. It is a fully populated type. Its typical moisture sensitivity level is 1 (unlimited). It has a long 10 weeks standard lead time. The product offers buck regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 1.2v, 1.5v, 1.8v or 2.5v. In addition, box is the available packaging type of the product. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number. Moreover, it corresponds to dc1658, a base product number of the product. The output and type include 1, non-isolated.

pdf icon
DC1658A Demo Manual(Manuals)
pdf icon
LTC3388-1, LTC3388-3 Datasheet(Datasheets)
pdf icon
DC1658A Schematic(Design Resources)
